Automatic Transaxle Fluid Replacement

  1. Inspect transaxle case for evidence of fluid leakage.

    Repair leaky point, if any.

  2. Make sure that vehicle is placed level.
  3. Change fluid. For its procedure, refer to A/T FLUID CHANGE .

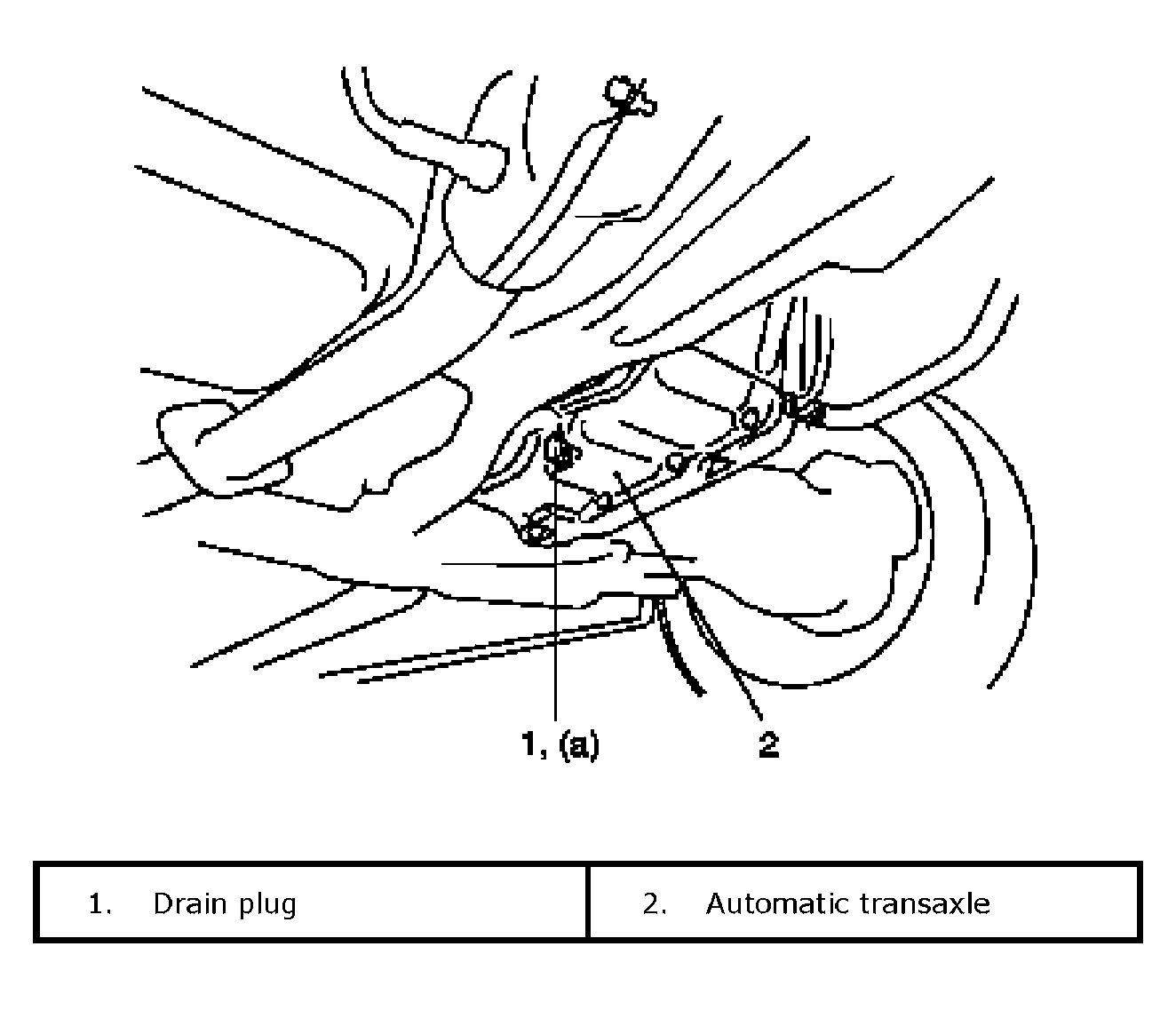

    Fig 1: Identifying Drain Plug Of Automatic Transaxle
    G04589392Courtesy of SUZUKI OF AMERICA CORP.
