EVAP Leak Check Module Removal and Installation (Vehicle with ORVR System): Installation

For installation, reverse removal procedure noting the following.

• Apply gasoline to O-ring of EVAP leak check module.
• Tighten EVAP leak check module bolts to specified torque.

  Tightening torque

  EVAP leak check module bolt a: 5.5 N.m (0.55 kg-m, 4.0 lb-ft)

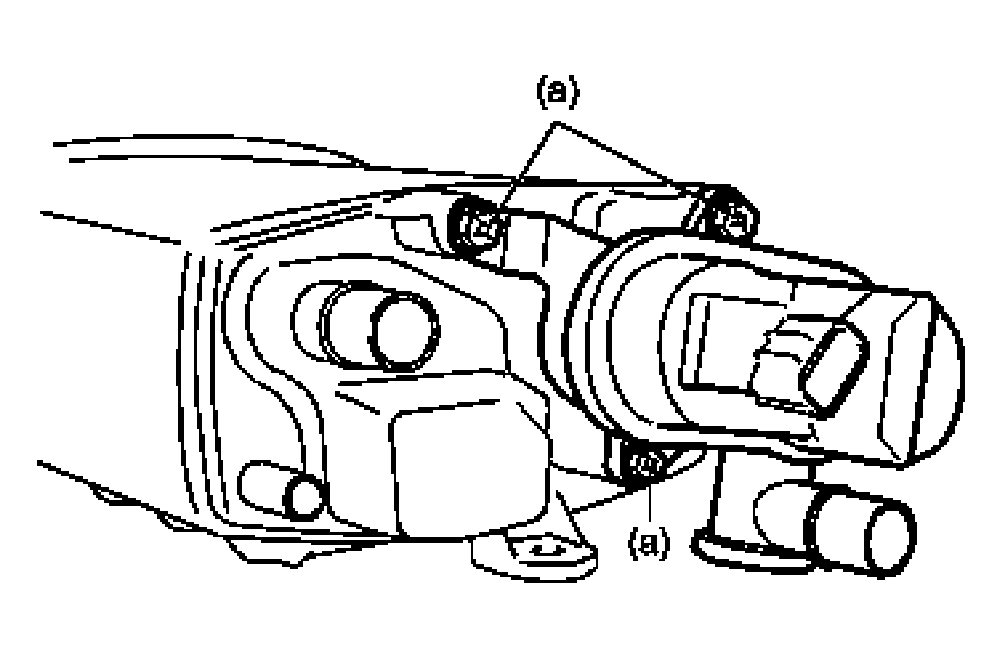

  Fig 1: Tightening EVAP Leak Check Module Bolts To Specified Torque

  Courtesy of SUZUKI OF AMERICA CORP.
• Install EVAP canister with EVAP leak check module referring to EVAP CANISTER REMOVAL AND INSTALLATION .
