Fuel Pump Assembly Removal and Installation: Installation

Reference: FUEL PUMP ASSEMBLY INSPECTION

1. Clean mating surfaces of fuel pump assembly (1) and fuel tank.
2. Put plate (2) on fuel pump assembly (1) by matching the protrusion of fuel pump assembly (3) to plate hole (4) as shown.

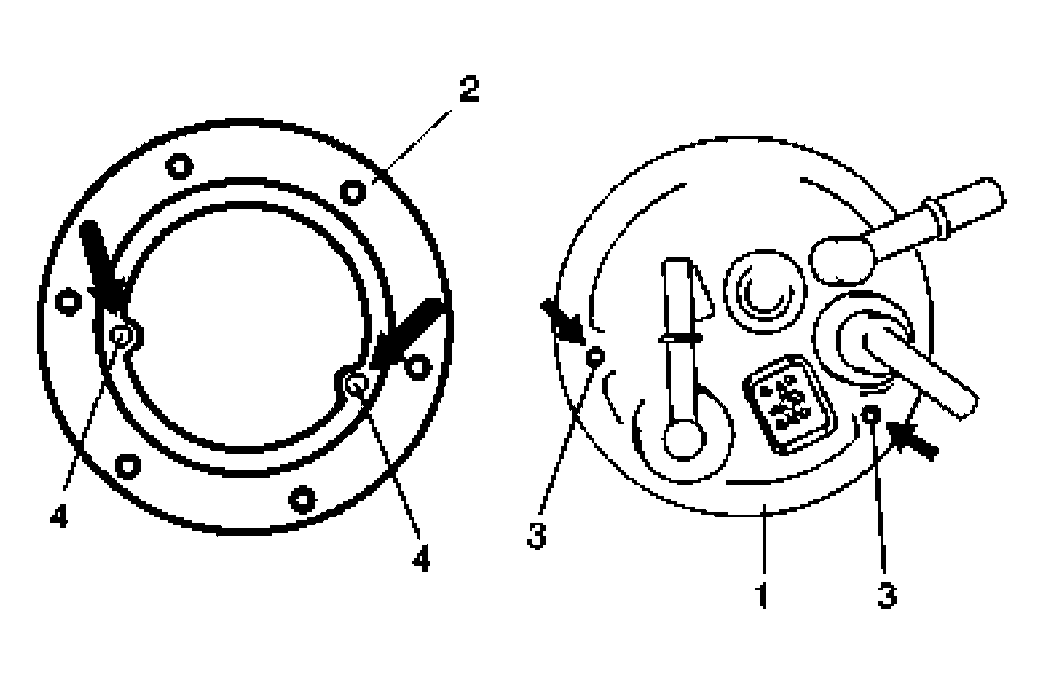

   Fig 1: Putting Plate On Fuel Pump Assembly

   Courtesy of SUZUKI OF AMERICA CORP.
3. Install new gasket (2) and fuel pump assembly (1) with plate (3) to fuel tank.

   Tightening torque

   Fuel pump assembly bolts a: 10 N.m (1.0 kg-m, 7.5 lb-ft)

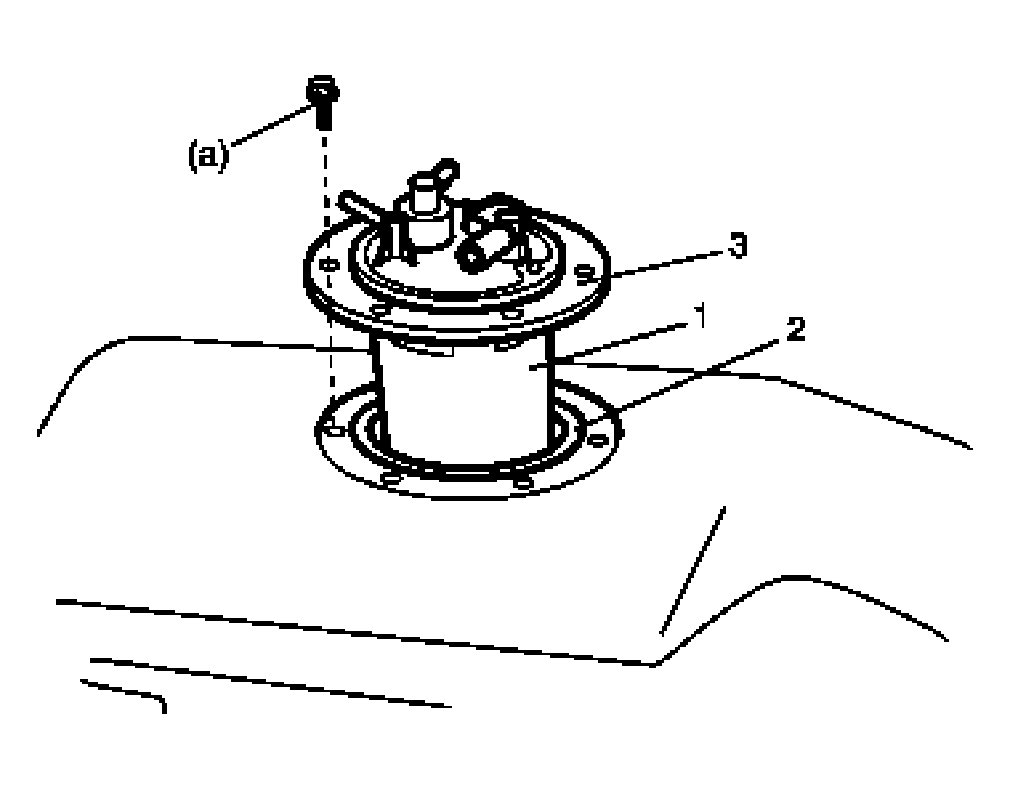

   Fig 2: Installing Gasket And Fuel Pump Assembly

   Courtesy of SUZUKI OF AMERICA CORP.
4. Connect fuel cut valve hose (1), fuel return pipe (2) (pipe joint) and fuel feed line (3) (pipe joint) to fuel pump assembly.
   CAUTION: When connecting joint, clean outside surface of pipe where joint is to be inserted, push joint into pipe till joint lock clicks and check to ensure that pipes are connected securely, or fuel leak may occur.

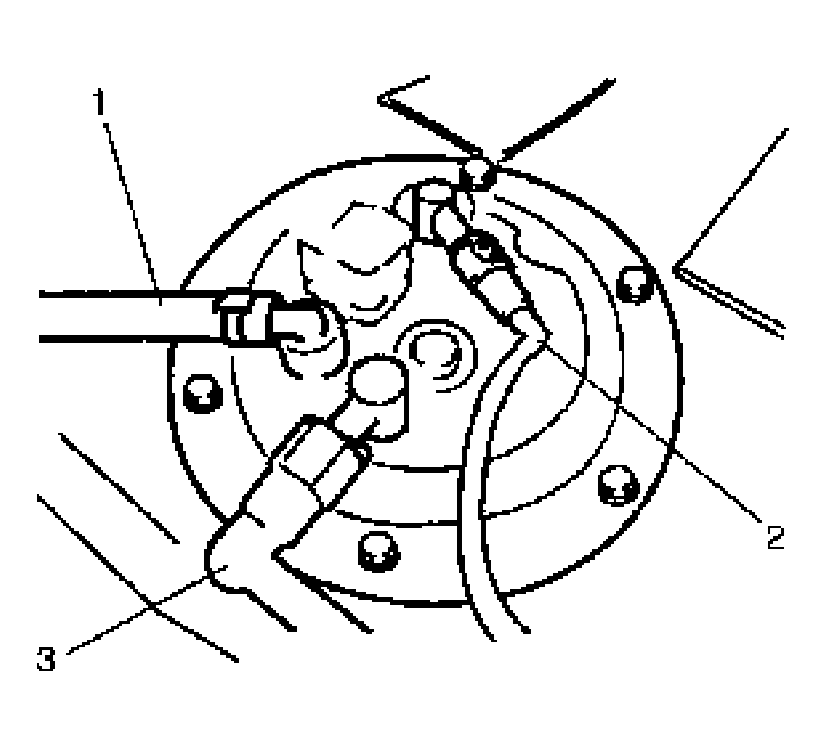

   Fig 3: Connecting Fuel Cut Valve Hose Fuel Return Pipe And Fuel Feed Line

   Courtesy of SUZUKI OF AMERICA CORP.
5. Install fuel tank to vehicle. Refer to FUEL TANK REMOVAL AND INSTALLATION .
