Engine and Emission Control System Diagram

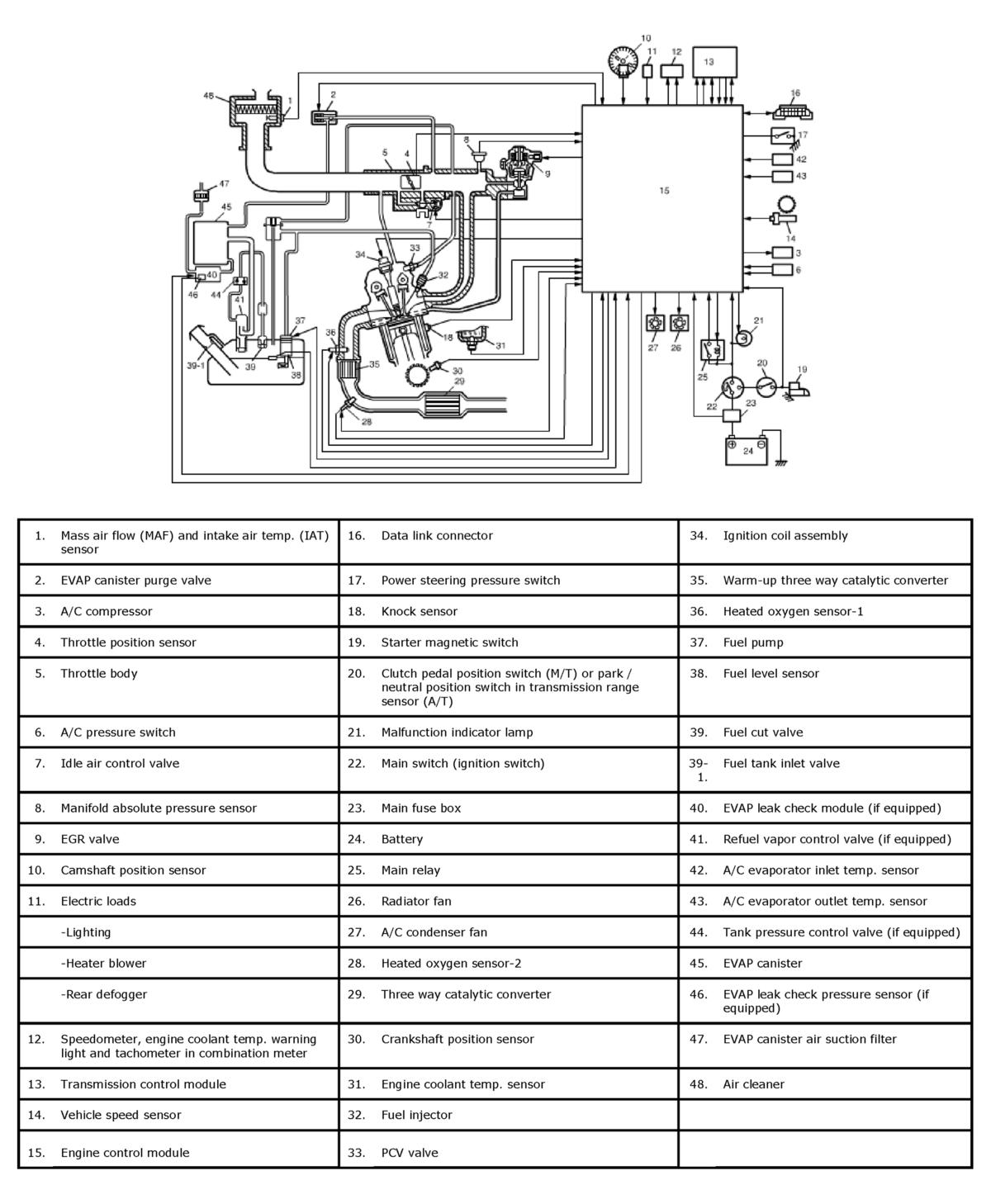

Fig 1: Engine And Emission Control System Diagram

G04589412

Courtesy of SUZUKI OF AMERICA CORP.
