Data Link Connector (DLC)

DLC (1) is in compliance with SAE J1962 in its installation position, the shape of connector and pin assignment.

OBD-II serial data line (K line of ISO 9141) (3) is used for SUZUKI scan tool or OBD-II generic scan tool to communicate with ECM, Air bag SDM, TCM and ABS control module.

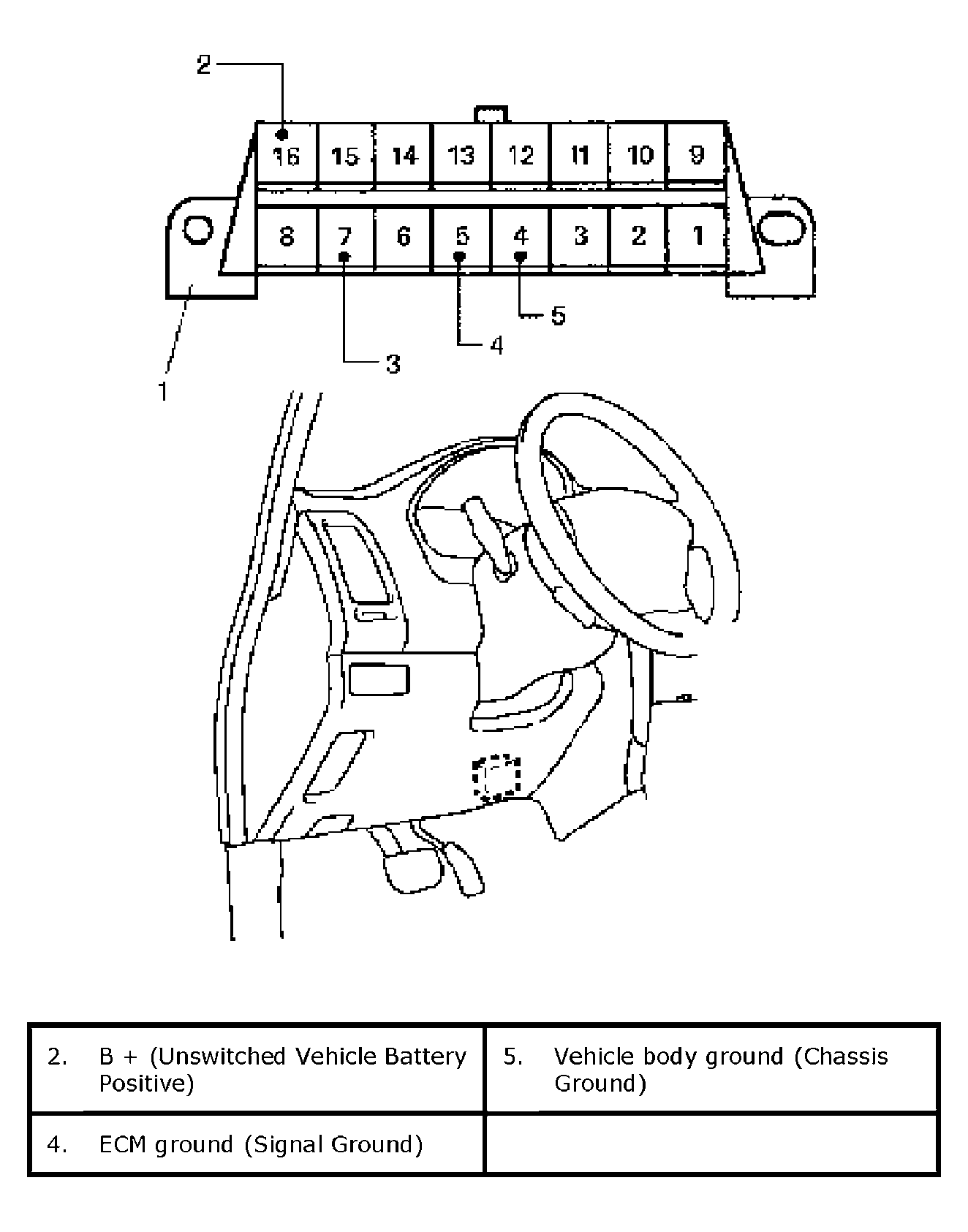

Fig 1: Identifying Data Link Connector (DLC)
G04589402Courtesy of SUZUKI OF AMERICA CORP.
