Engine and Emission Control Input / Output Table

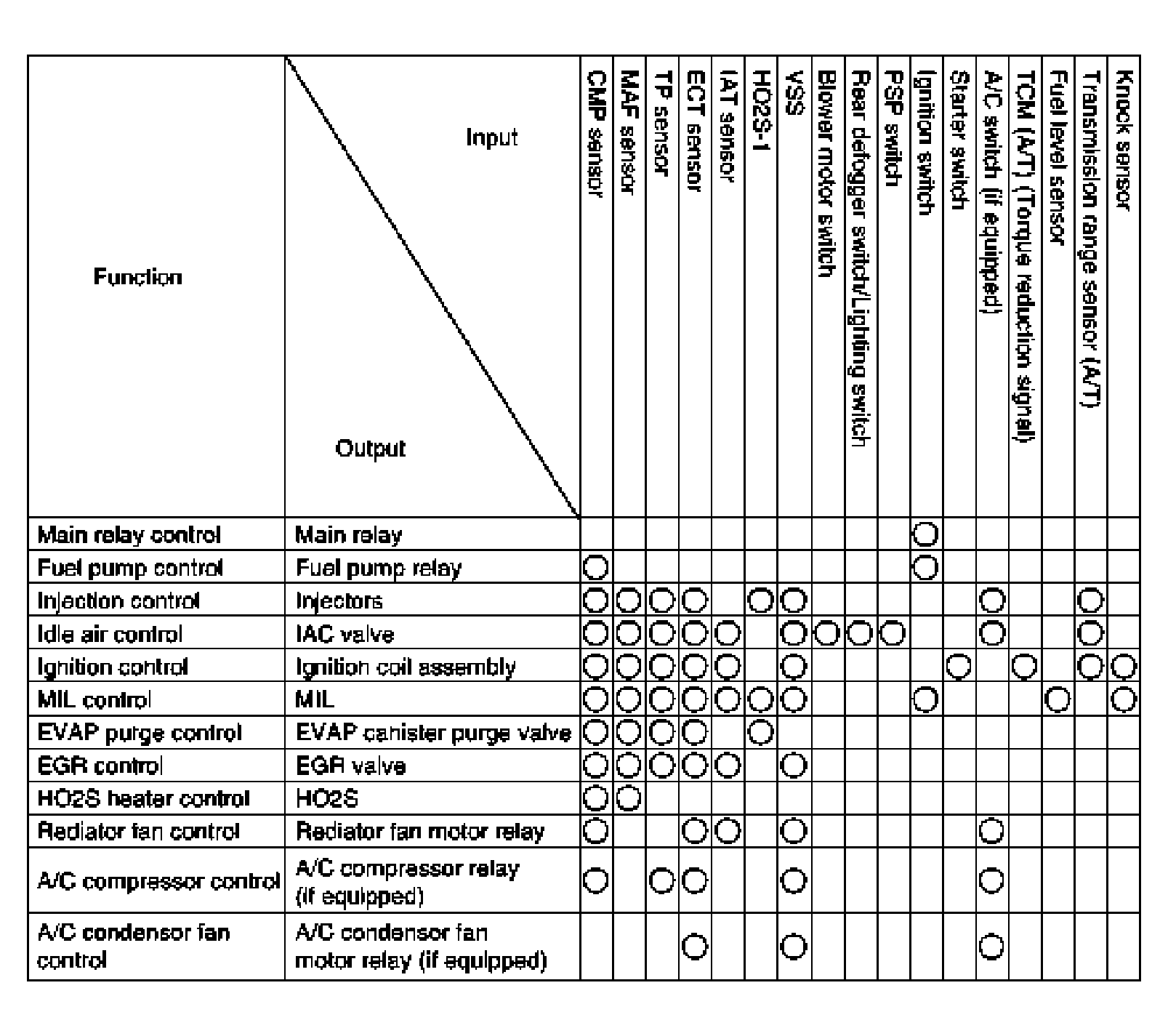

Fig 1: Engine And Emission Control Input / Output Table

G04589411

Courtesy of SUZUKI OF AMERICA CORP.
