Power Steering Pressure (PSP) Switch Signal Circuit Check: Wiring Diagram

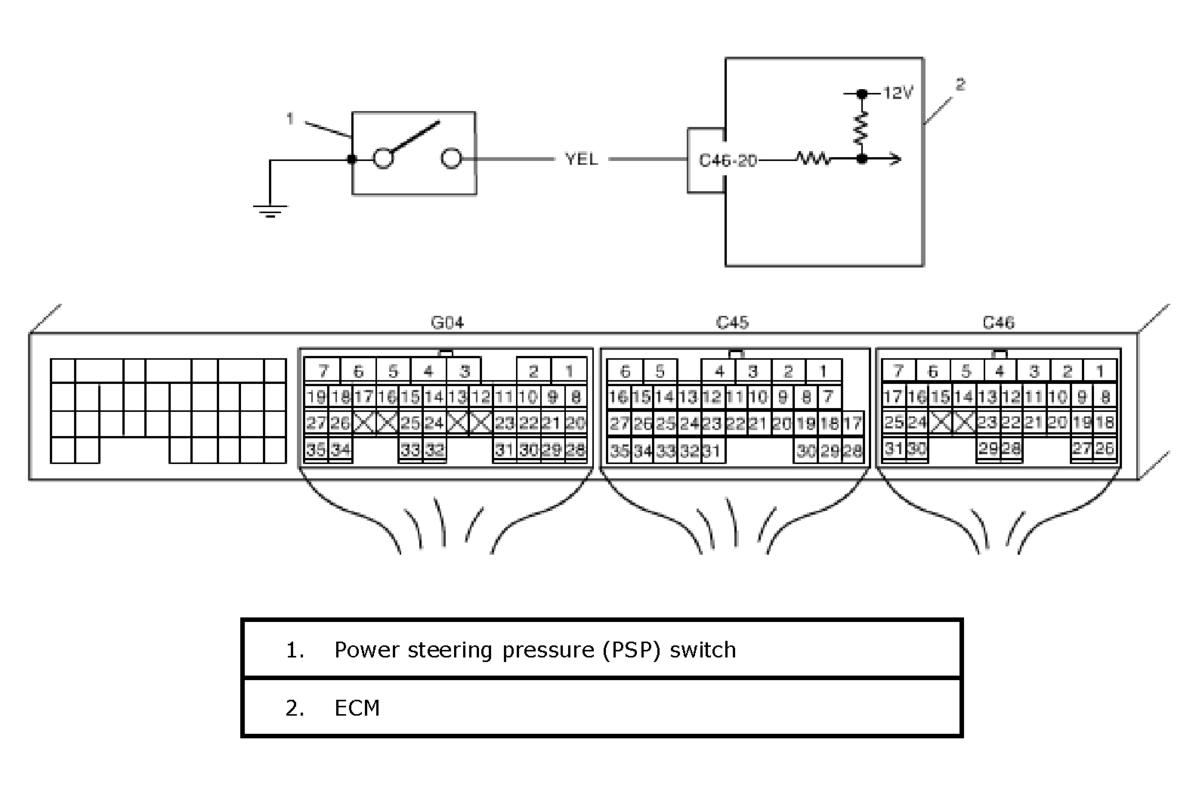

Fig 1: Power Steering Pressure (PSP) Switch Signal Circuit - Wiring Diagram

G04589559

Courtesy of SUZUKI OF AMERICA CORP.
