DTC P0122: Throttle Position Sensor Circuit Low Input: Wiring Diagram

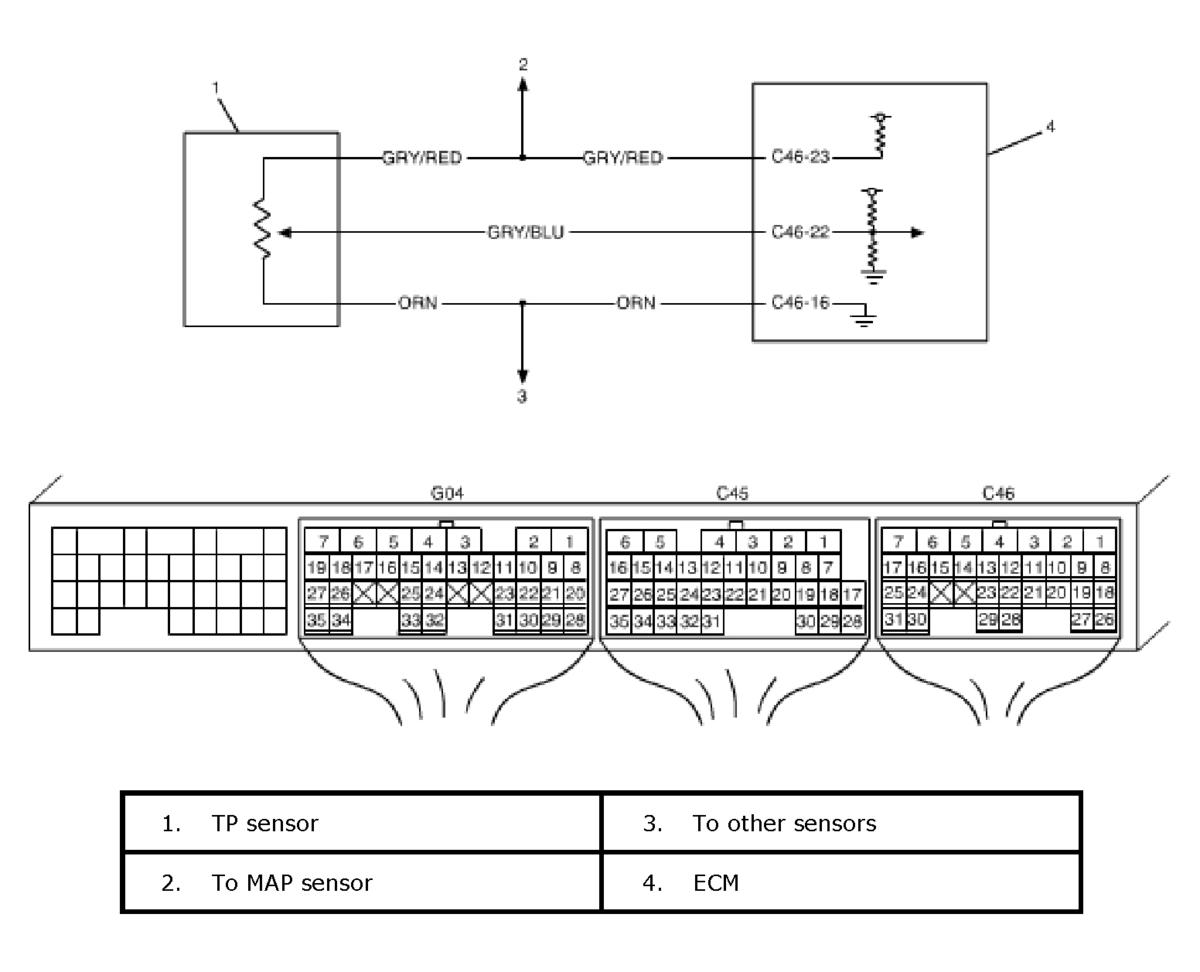

Fig 1: Throttle Position Sensor Circuit Low Input - Wiring Diagram

G04589447

Courtesy of SUZUKI OF AMERICA CORP.
