DTC P0102: Mass Air Flow Sensor Circuit Low Input: Wiring Diagram

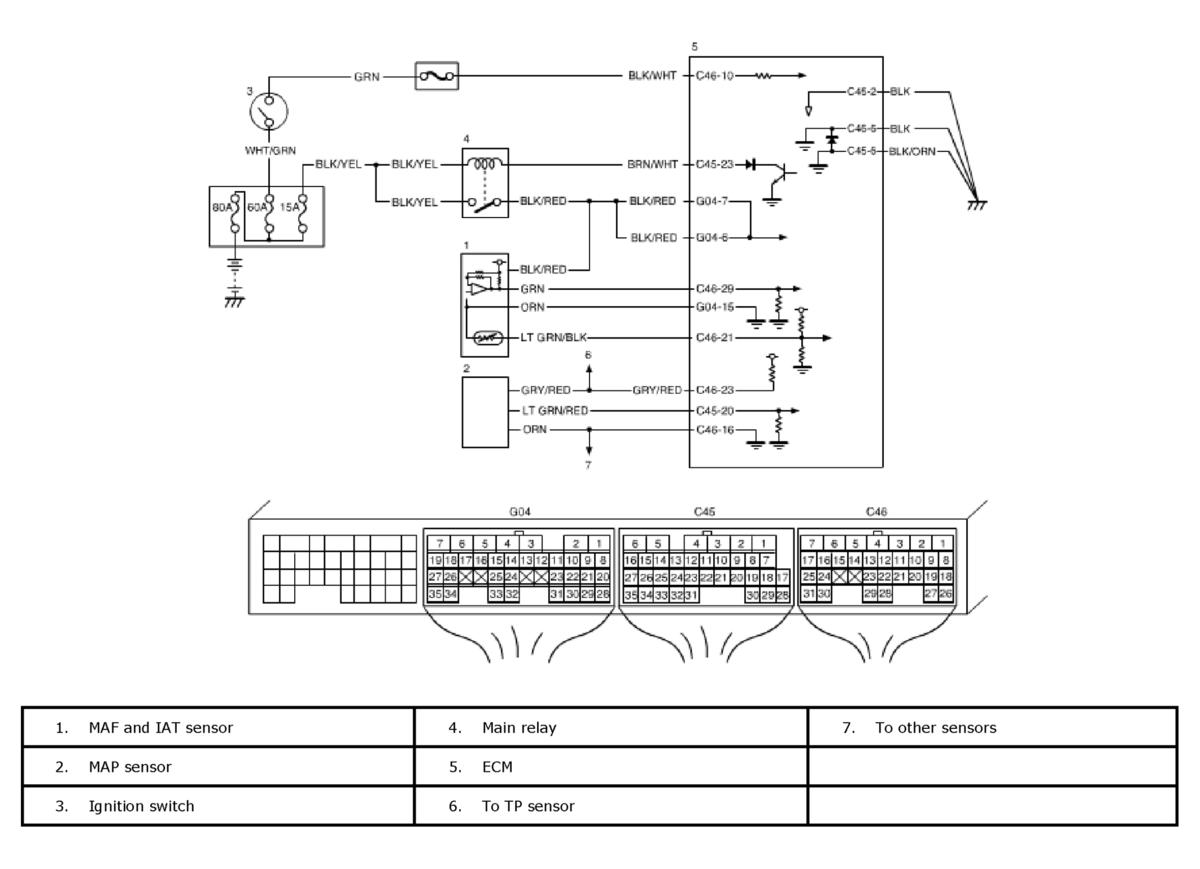

Fig 1: Mass Air Flow Sensor Circuit Low Input - Wiring Diagram

G04589426

Courtesy of SUZUKI OF AMERICA CORP.
