Electronic Control System Components Location

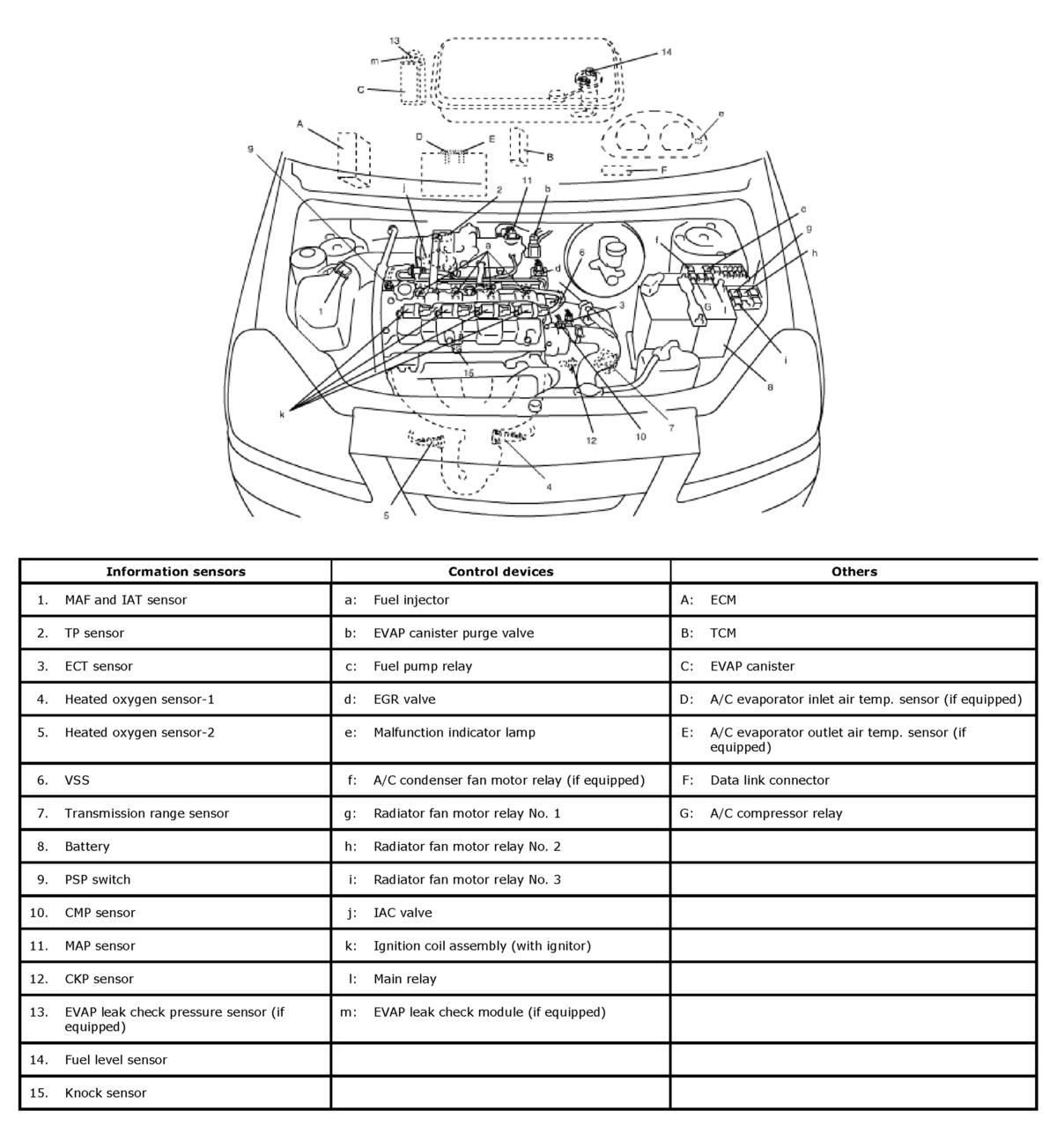

Fig 1: Identifying Electronic Control System Components Location

G04589413

Courtesy of SUZUKI OF AMERICA CORP.
