Transmission Control Module (TCM) Wiring Diagram: Notes

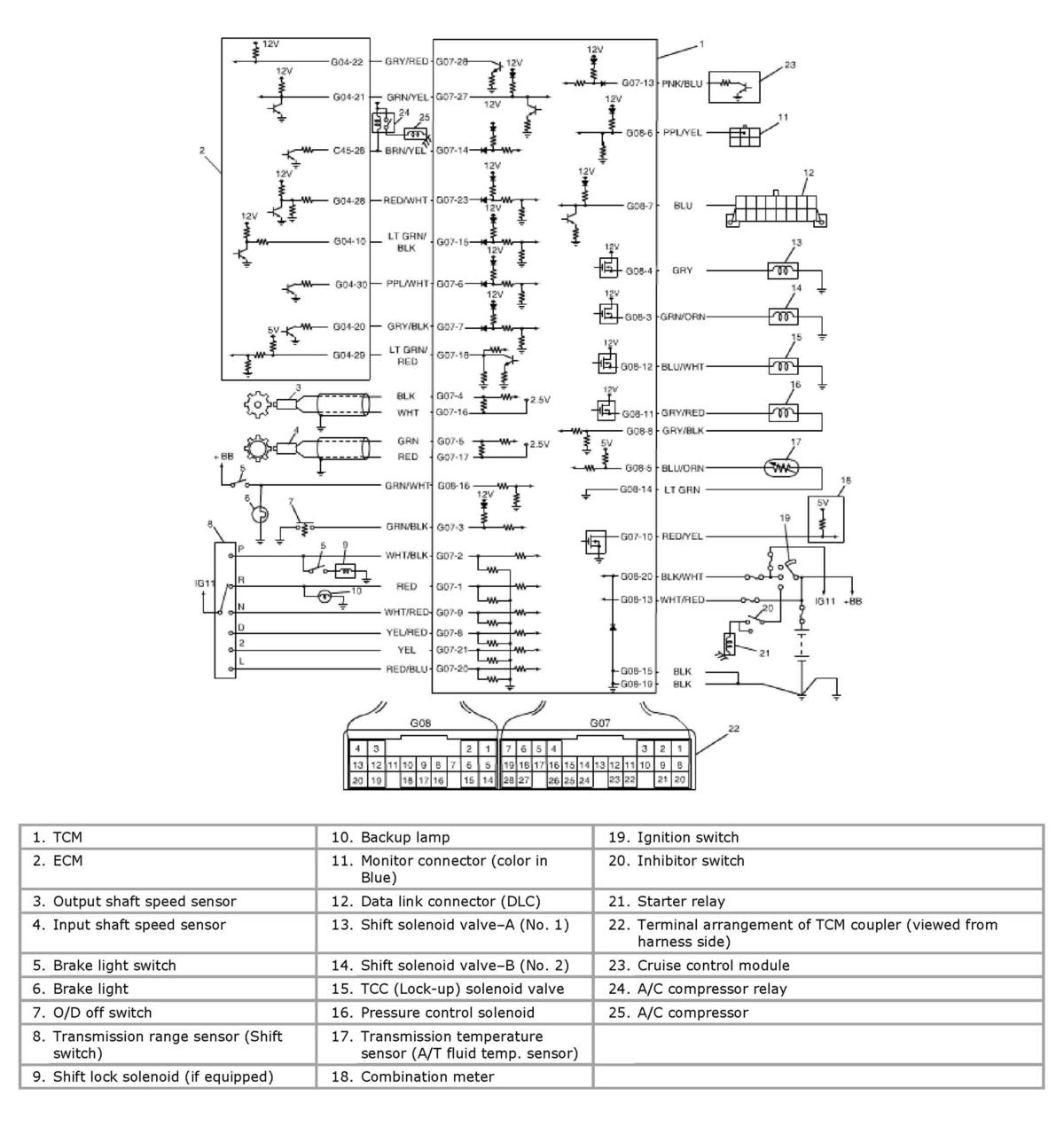

Fig 1: Wiring Diagram - Transmission Control Module (TCM)

G04591805

Courtesy of SUZUKI OF AMERICA CORP.
