ABS Hydraulic Unit / Control Module Assembly Removal and Installation: Installation

Install hydraulic unit / control module assembly by reversing removal procedure.
Tightening torque

Brake pipe flare nut a: 16 N.m (1.6 kg-m, 11.5 lb-ft)

ABS hydraulic unit / control module assembly bolt b: 9 N.m (0.9 kg-m, 6.5 lb-ft)

ABS hydraulic unit / control module assembly bracket bolt c: 23 N.m (2.3 kg-m, 16.5 lb-ft)

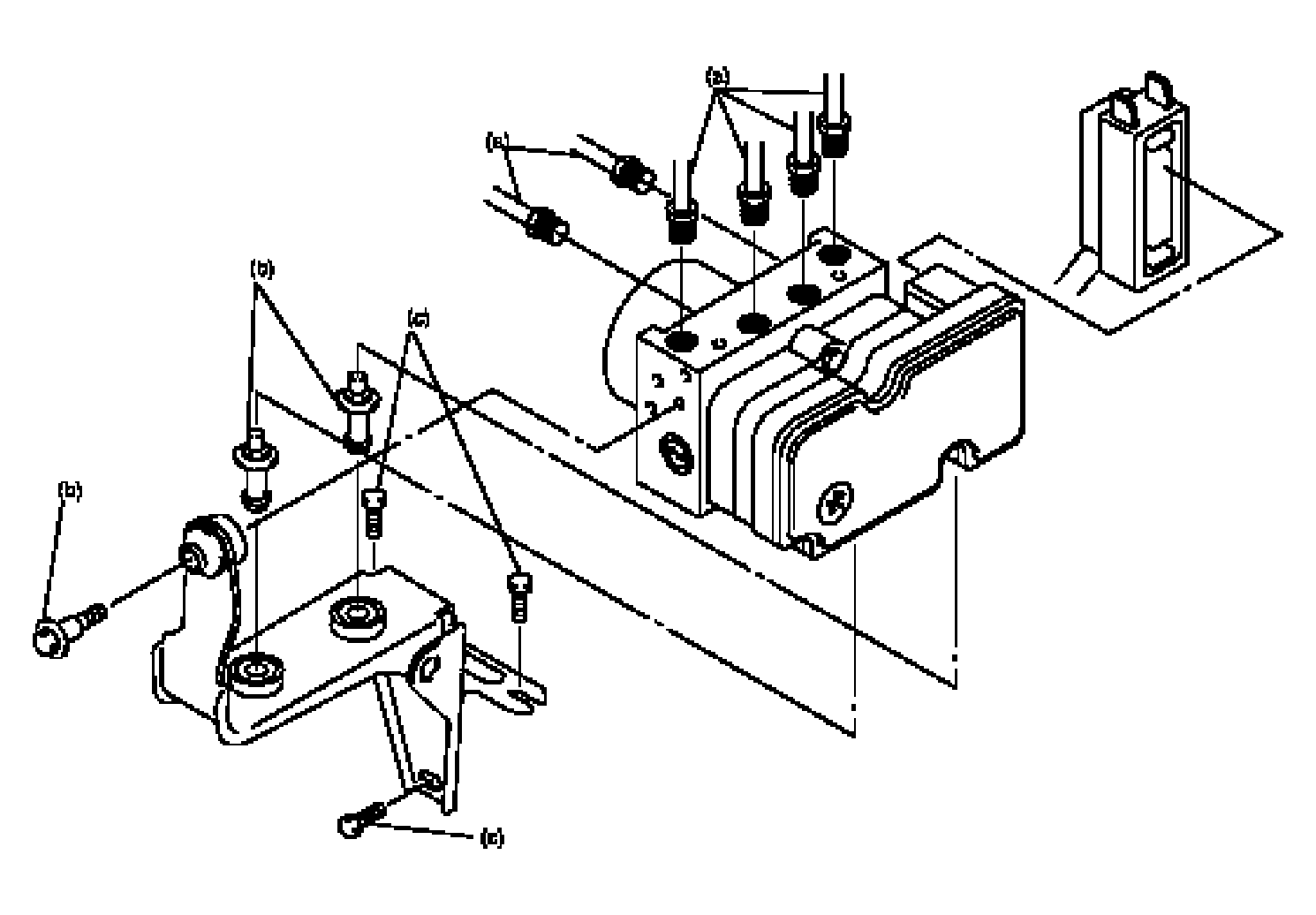

Fig 1: Installing ABS Hydraulic Unit / Control Module Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Bleed air from brake system referring to AIR BLEEDING OF BRAKE SYSTEM .
Check each installed part for fluid leakage and perform ABS HYDRAULIC UNIT OPERATION CHECK .
NOTE: For new ABS hydraulic unit / control module assembly, if ABS HYDRAULIC UNIT OPERATION CHECK procedure has not been performed, ABS warning lamp may flash when ignition switch is turned ON position.
Accordingly preform ABS HYDRAULIC UNIT OPERATION CHECK to stop flashing of ABS warning lamp.
