Select Cable Component

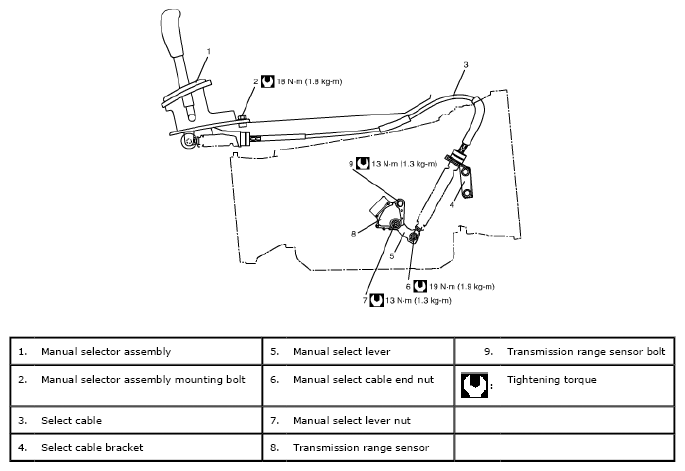

Fig 1: Select Cable Replacement Components With Torque Specifications

G04722594

Courtesy of SUZUKI OF AMERICA CORP.
