Electronic Shift Control System Components Location

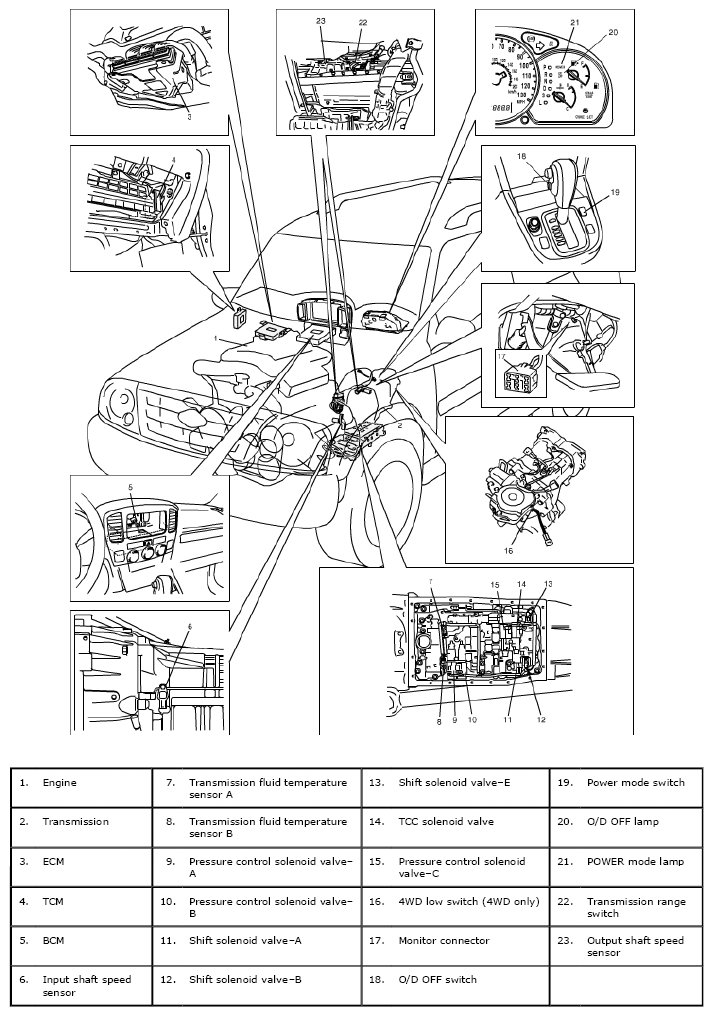

Fig 1: Identifying Electronic Shift Control System Components Location

G04722530

Courtesy of SUZUKI OF AMERICA CORP.
