Mass Air Flow (MAF) Sensor Removal and Installation: Removal

  1. Disconnect negative cable (-) at battery and coupler (1) from MAF sensor (3).
  2. Remove air cleaner case (2) with MAF sensor (3).

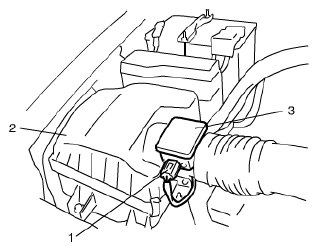

    Fig 1: Identifying MAF Sensor, MAF Sensor Coupler And Air Cleaner Case
    G04721153Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove bracket (1) and MAF sensor (2) from air cleaner case.
    Fig 2: Identifying Bracket And MAF Sensor
    G04721154Courtesy of SUZUKI OF AMERICA CORP.
