Transfer Gear Components

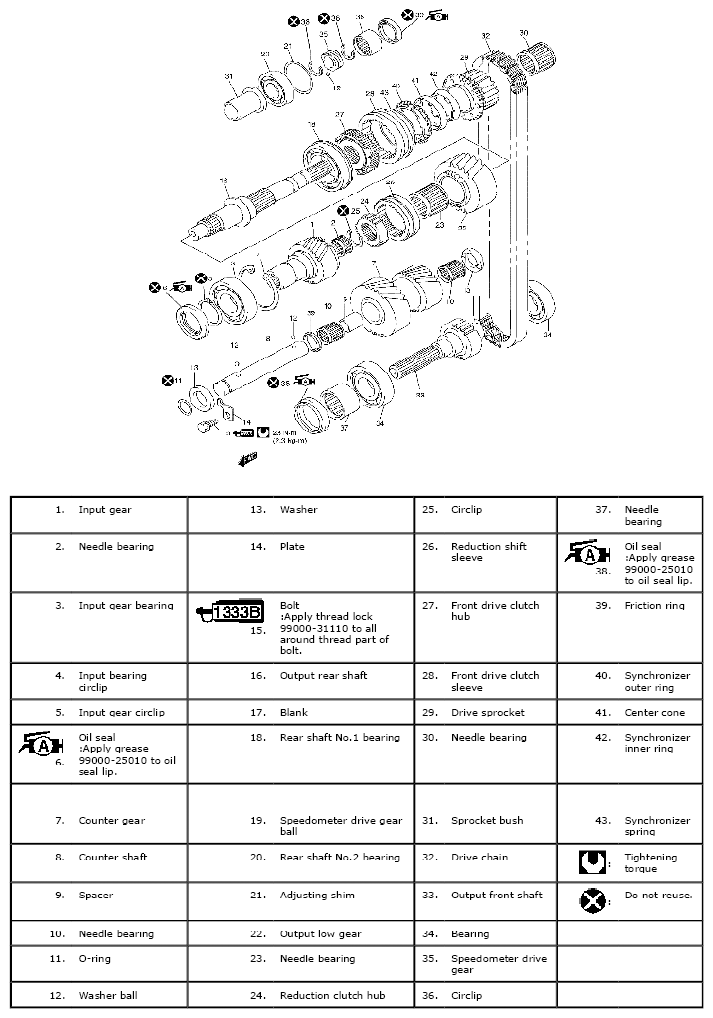

Fig 1: Transfer Gear Replacement Components With Torque Specifications

G04722199

Courtesy of SUZUKI OF AMERICA CORP.
