Electronic Shift Control System Wiring Diagram

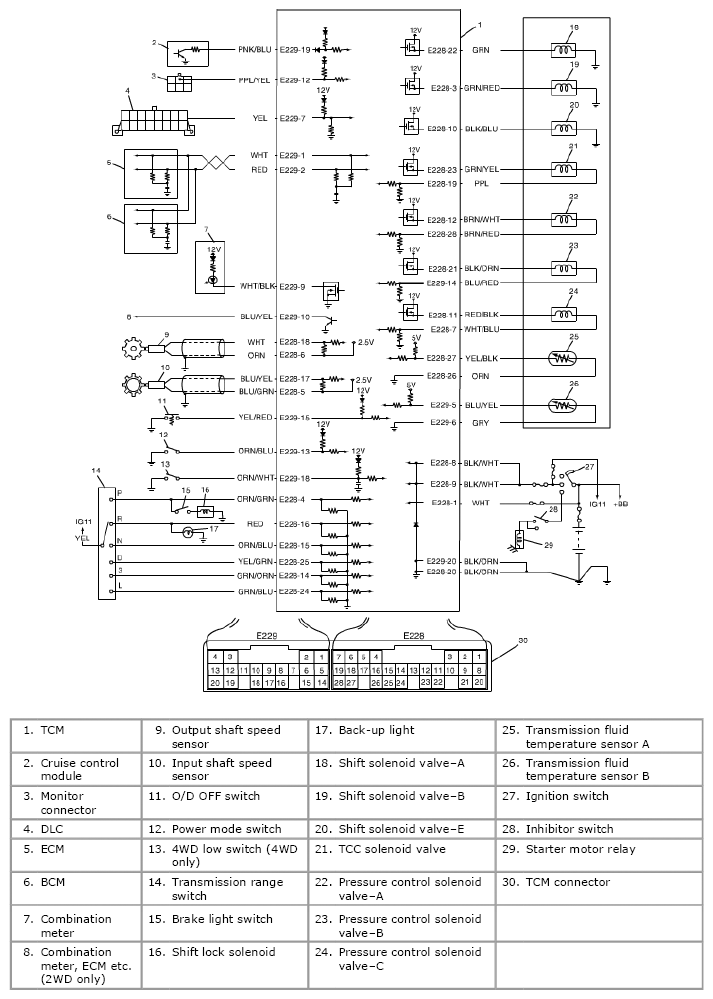

Fig 1: Electronic Shift Control System Wiring Diagram

G04722526

Courtesy of SUZUKI OF AMERICA CORP.
