ABS Hydraulic Unit/Control Module Assembly Components

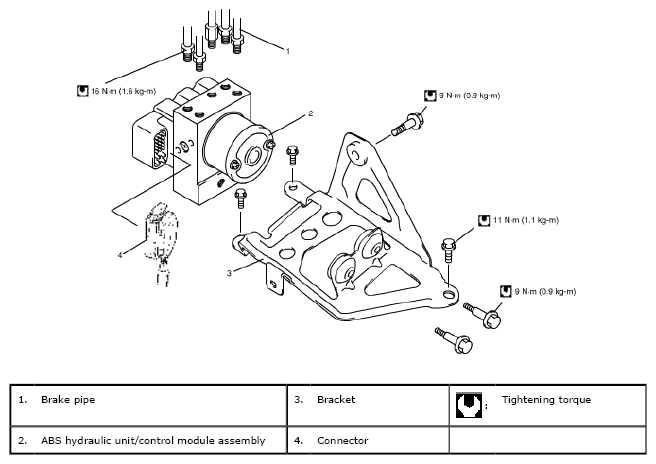

Fig 1: ABS Hydraulic Unit/Control Module Assembly Replacement Components With Torque Specifications

G04722494

Courtesy of SUZUKI OF AMERICA CORP.
