LEMON Manuals
: Even more car manuals for everyone
Home
>>
Suzuki
>>
2006
>>
XL-7 Base, 4WD, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Repair Instructions
>>
Transfer Case Component
Transfer Case Component

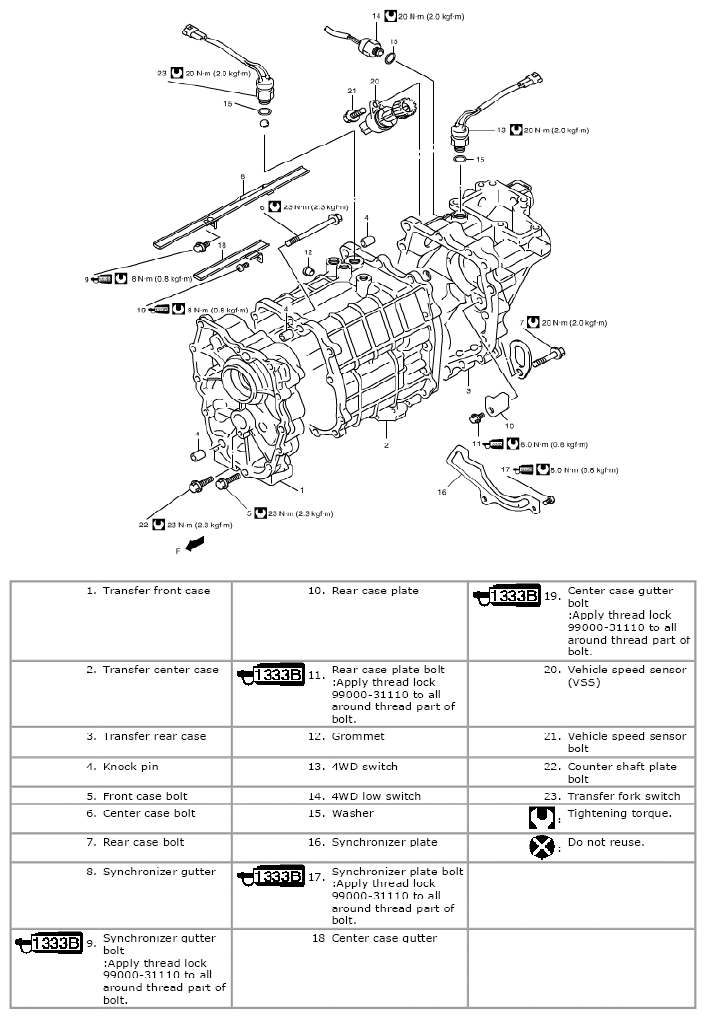

Fig 1: Transfer Case Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
