Oil Pump Assembly Components

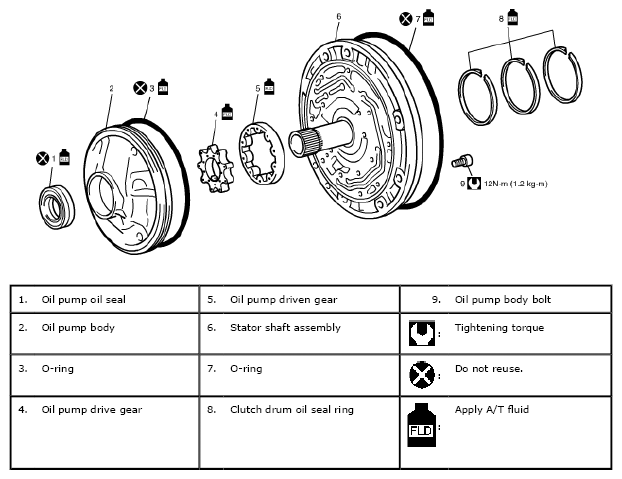

Fig 1: Oil Pump Assembly Replacement Components With Torque Specifications

G04722719

Courtesy of SUZUKI OF AMERICA CORP.
