Power Window Sub Switch Inspection

Inspect switch continuity between terminal.

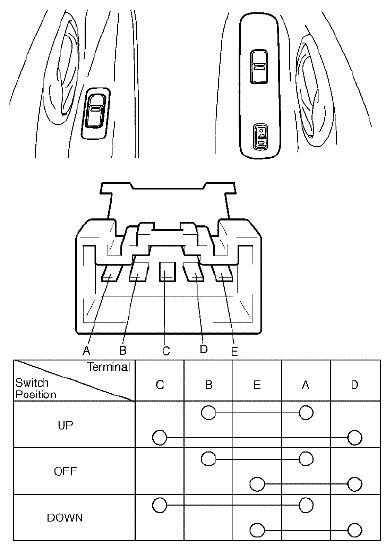

Fig 1: Identifying Power Window Sub Switch Connector Terminals & Continuity

G04723854

Courtesy of SUZUKI OF AMERICA CORP.
