Power Window Main Switch Inspection

Inspect switch continuity between terminals.

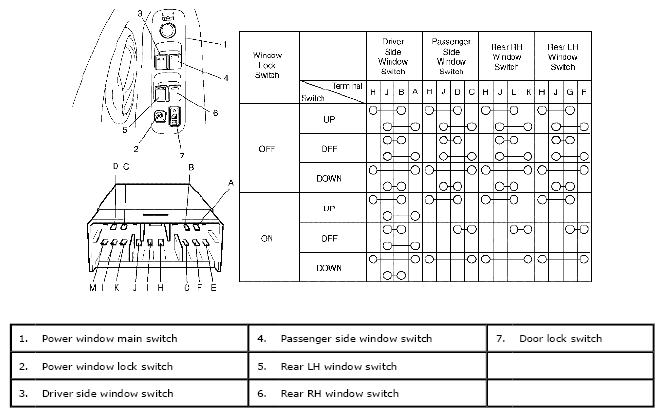

Fig 1: Identifying Power Window Main Switch Connector Terminals & Continuity

G04723853

Courtesy of SUZUKI OF AMERICA CORP.
