Intake Air Temperature (IAT) Sensor Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the intake air temperature (IAT) sensor connector.
  3. Remove the IAT sensor.

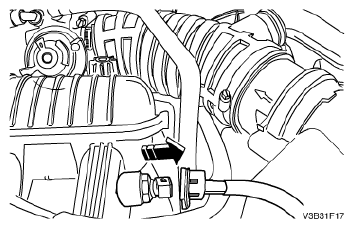

    Fig 1: Disconnecting IAT Sensor Connector
    G04718824Courtesy of SUZUKI OF AMERICA CORP.
