Home
>>
Suzuki
>>
2006
>>
Verona Luxury
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical Control System
>>
Schematic and Routing Diagram
>>
Fuse Chart
Fuse Chart

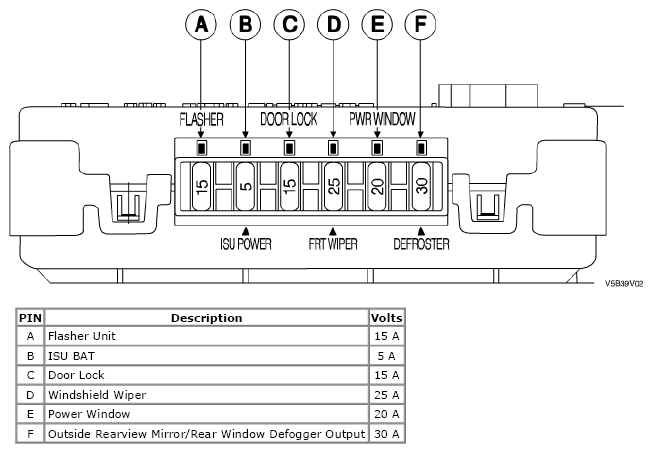

Fig 1: Fuse Identification Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
