Rear Parallel Link Installation

  1. Install the rear parallel link with bolt-to-knuckle and the bolt-to-rear crossmember.

    Tighten:

    Tighten the rear parallel link bolt-to-knuckle and the bolt-to-crossmember to 110 N.m (81 lb-ft).

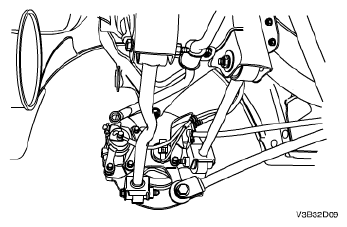

    Fig 1: Identifying Rear Parallel Link & Bolts
    G04719301Courtesy of SUZUKI OF AMERICA CORP.
