P/S Pump Assembly Removal

NOTE: The unit repair of the power steering in this vehicle is not serviceable. A faulty pump must be replaced with a new one.

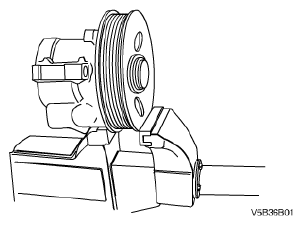

Fig 1: Identifying Power Steering Pump

Courtesy of SUZUKI OF AMERICA CORP.

Remove the serpentine accessory drive belt. Refer to Serpentine Accessory Drive Belt Removal .

Fig 2: Identifying Wrench And Serpentine Accessory Drive Belt
Courtesy of SUZUKI OF AMERICA CORP.
Position a drain pan to catch the power steering fluid that will drain from the high-pressure hose after it is disconnected from the power steering pump.
Disconnect the high-pressure hose and the supply hose from the power steering pump.

Fig 3: Identifying Pressure Line Pipe And Supply Line Hose
Courtesy of SUZUKI OF AMERICA CORP.
Remove the bolt from the front right side of the power steering pump. Loosen the rear right bolt and swing the bracket out of the way.

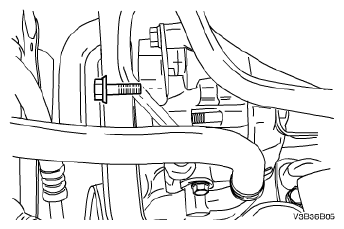

Fig 4: Identifying Power Steering Pump & Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove the 2 long power steering pump bolts and remove the power steering pump from the vehicle.

Fig 5: Identifying Power Steering Pump & Long Bolts
Courtesy of SUZUKI OF AMERICA CORP.

NOTE: The unit repair of the power steering pump in this vehicle is not serviceable.
A faulty pump must be replaced with a new one.
