DTC P0404: Exhaust Gas Recirculation (EGR) Open Position Performance
>>
Notes
DTC P0404: Exhaust Gas Recirculation (EGR) Open Position Performance: Notes

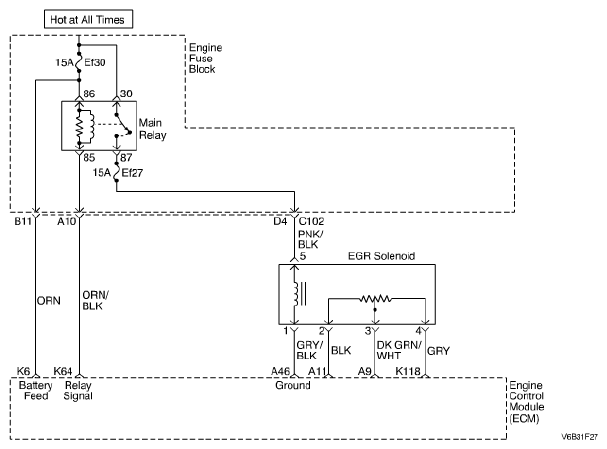

Fig 1: Exhaust Gas Recirculation (EGR) Open Position Performance - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
