DTC P0329: Knock Sensor 1 Malfunction: Notes

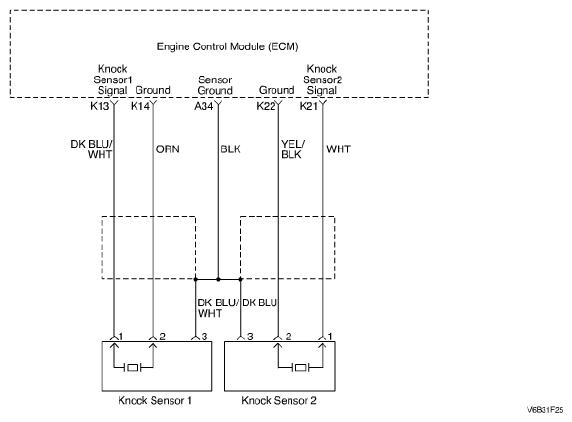

Fig 1: Knock Sensor 1 Malfunction - Wiring Diagram

G04718708

Courtesy of SUZUKI OF AMERICA CORP.
