DTC U0121: Lost Communication with ABS Control Module: Notes

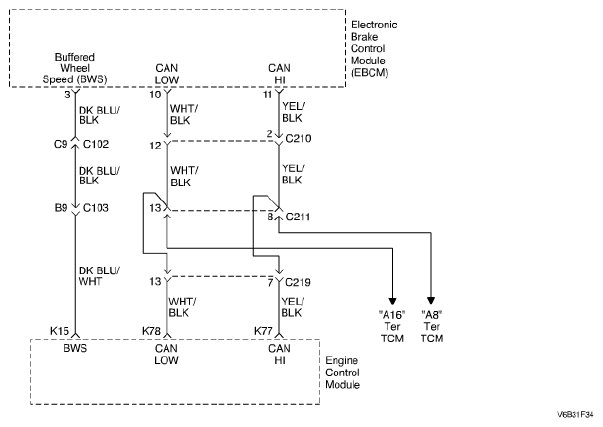

Fig 1: Lost Communication With ABS Control Module - Wiring Diagram

G04718782

Courtesy of SUZUKI OF AMERICA CORP.
