DTC P2119: Throttle Closed Position Performance: Notes

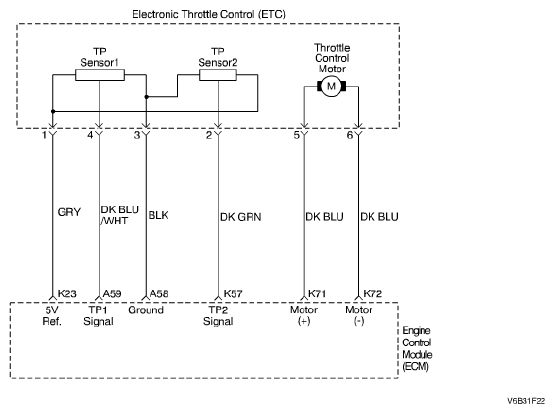

Fig 1: Throttle Closed Position Performance - Wiring Diagram
G04718660Courtesy of SUZUKI OF AMERICA CORP.
