DTC P1668: Engine Coolant Temperature (ECT) Signal Output: Notes

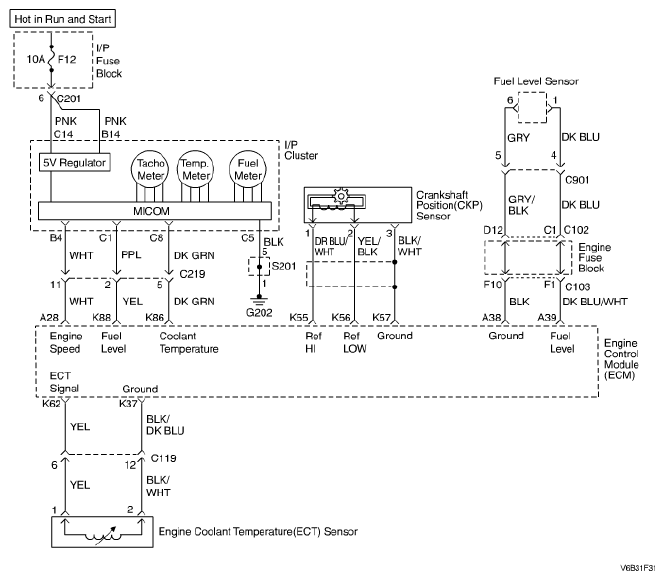

Fig 1: Engine Coolant Temperature (ECT) Signal Output - Wiring Diagram

G04718753

Courtesy of SUZUKI OF AMERICA CORP.
