DTC P1628: No Successful Communication Before Time Out: Notes

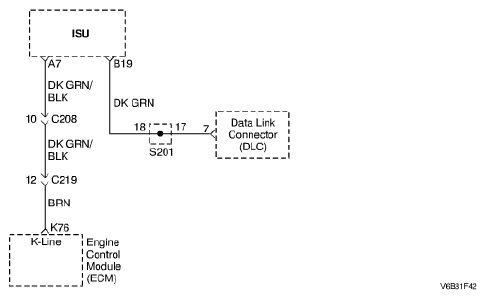

Fig 1: No Successful Communication Before Time Out - Wiring Diagram

G04718762

Courtesy of SUZUKI OF AMERICA CORP.
