Key Cylinder Installation

Set the ignition key to ACC position.
Install the key cylinder by pushing it into the key cylinder housing.

Fig 1: Installing Key Cylinder Into Housing
Courtesy of SUZUKI OF AMERICA CORP.
Install the steering column jacket assembly securing bolts and nuts.
Tighten:

Tighten the steering column jacket assembly securing bolts and nuts to 22 N.m (16 lb-ft).

Fig 2: Identifying Steering Column Jacket Assembly, Bolts And Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Install the instrument cluster trim panel. Refer to INSTRUMENT CLUSTER TRIM PANEL INSTALLATION .
Install the instrument panel under cover. Refer to INSTRUMENT PANEL INSTALLATION .
Install the knee bolster. Refer to DRIVER'S SIDE KNEE BOLSTER INSTALLATION .

Fig 3: Identifying Instrument Panel, Trim Panel And Knee Bolster
Courtesy of SUZUKI OF AMERICA CORP.
Install the audio system trim plate. Refer to INSTRUMENT CLUSTER TRIM PANEL INSTALLATION .

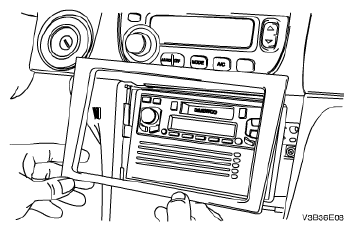

Fig 4: Identifying Audio System Trim Plate
Courtesy of SUZUKI OF AMERICA CORP.
Install the upper and the lower steering column cover panel.
Tighten:

Tighten the upper and the lower steering column cover panel screws to 2.5 N.m (22 lb-in.).
Connect the negative battery cable.

Fig 5: Identifying Upper And Lower Steering Column Cover Panel Screws
Courtesy of SUZUKI OF AMERICA CORP.
