Defogger System Diagram
Defogger System Diagram

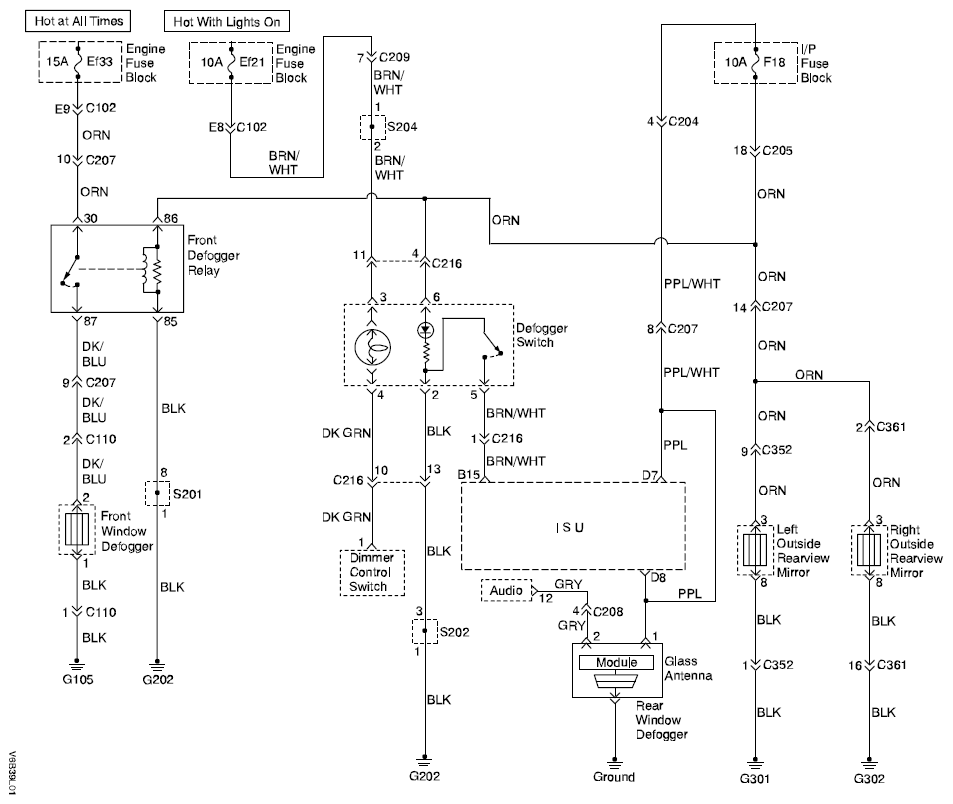

Fig 1: Defogger System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
