Under Body Dimension: Notes

Unit: mm

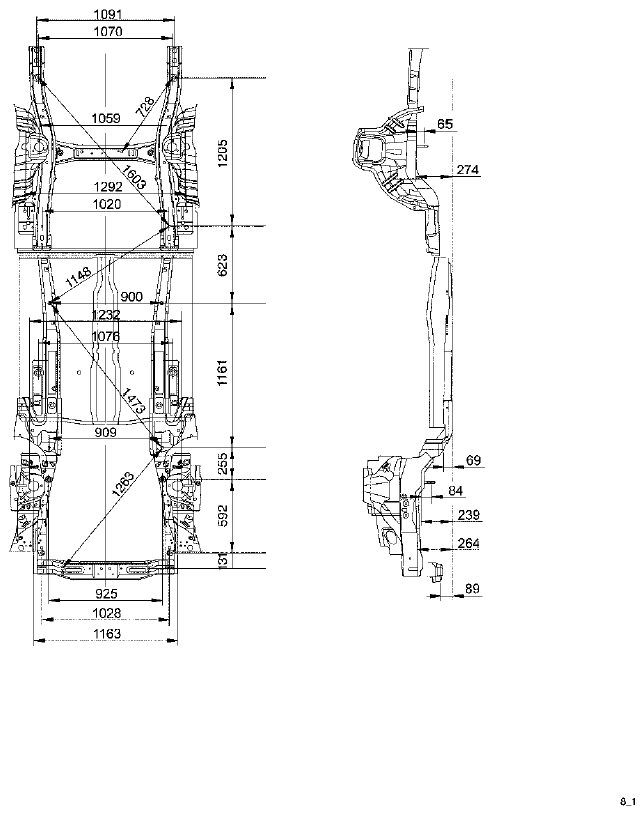

Fig 1: Identifying Body Dimension - Specifications

G04720735

Courtesy of SUZUKI OF AMERICA CORP.
