Home >> Suzuki >> 2006 >> Verona Base >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Body Structure >> Specifications >> Under Body Dimension >> Front Frame

Front Frame

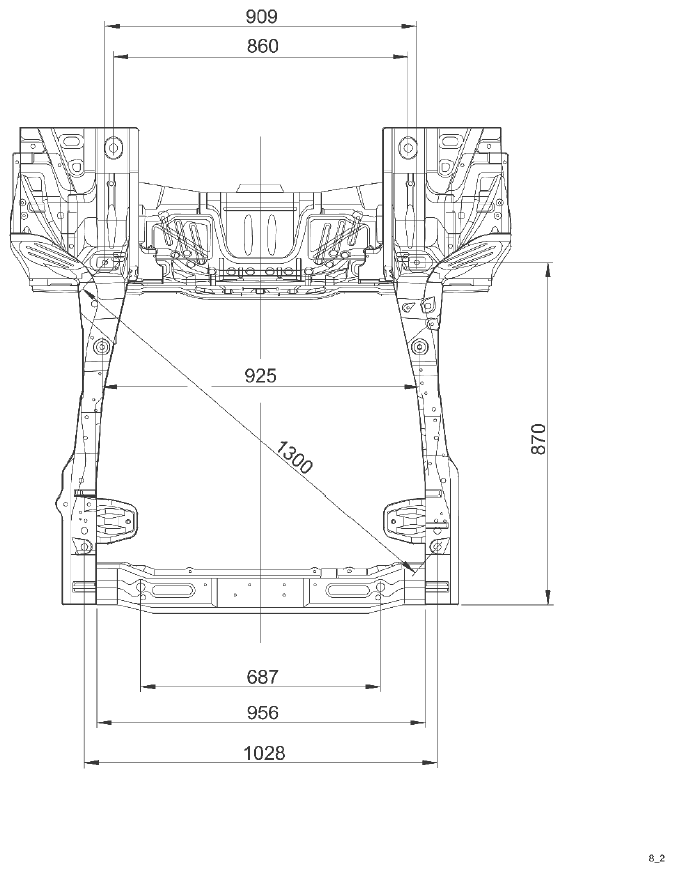

Fig 1: Identifying Front Frame Dimension - Specifications

G04720736

Courtesy of SUZUKI OF AMERICA CORP.
