Key Interlock System

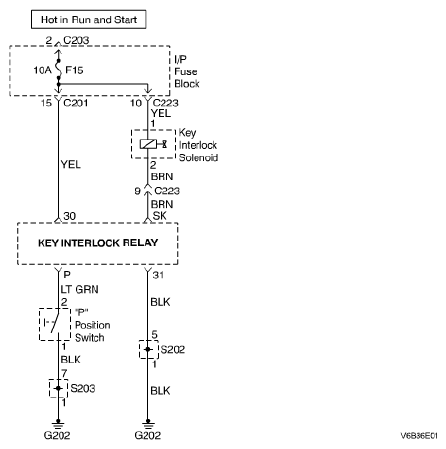

KEY INTERLOCK SYSTEM - DIAGNOSTIC PROCEDURES
| Checks | Action |
|---|---|
| Check to see that the ignition switch is set correctly. | Reset the ignition switch. |
| Check the lock cylinder for damage. | Replace the lock cylinder. |
| Check the fuse F15 from the I/P fuse block. | Replace the fuse F15. |
| Check for an open or short in the circuit between terminal 2 of key interlock solenoid and the I/P fuse block. | Replace the fuse F15. |
| Select the gear shift lever to "P" position. Check the resistance between the terminal 2 and 1 of the "P" position switch. |
Replace the "P" position switch. |
| Check for an open or short in the circuit between the ground G202 and terminal 1 of the key interlock relay. | Replace the open or short from the circuit. |
| Turn the ignition ON. Select the gear shift lever to "P" position. Check the resistance between the terminal 1 and 2 of the key interlock solenoid. |
Replace the key interlock solenoid. |
