Instrument Panel (I/P) Module
CAUTION:
Refer to SIR Caution
.

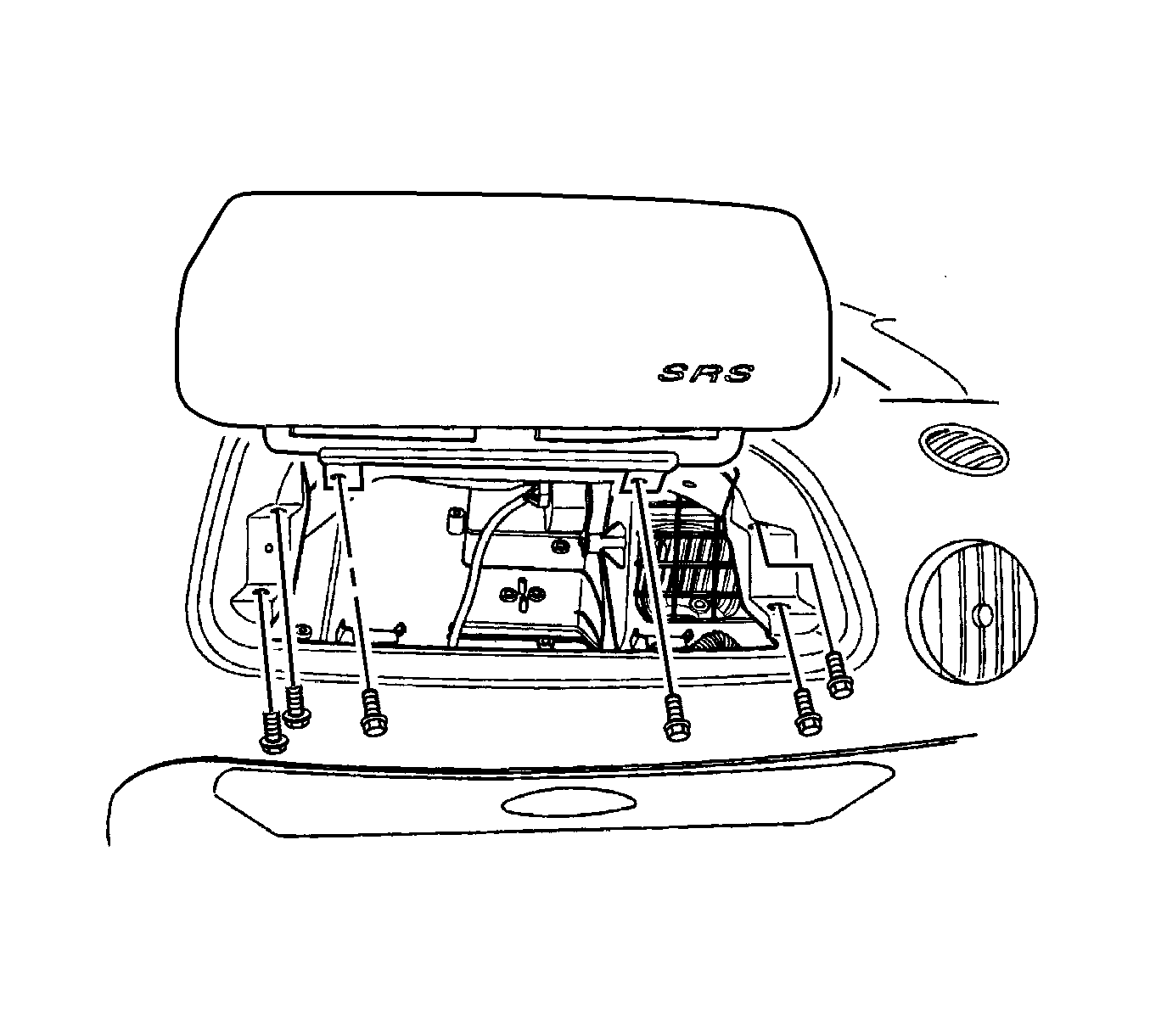

The I/P module is on the passenger part of the instrument panel (I/P). The I/P module contains an igniter charge and a gas generator to inflate the folded air bag.
The air bag connector contains a shorting bar, which makes the circuit shorted when the connector is disconnected. The shorting bar prevents current from travelling through the I/P module during servicing. The shorting bar is disengaged when the connector is connected.
