DTC P0301: Cylinder 1 Misfire Detected: Notes

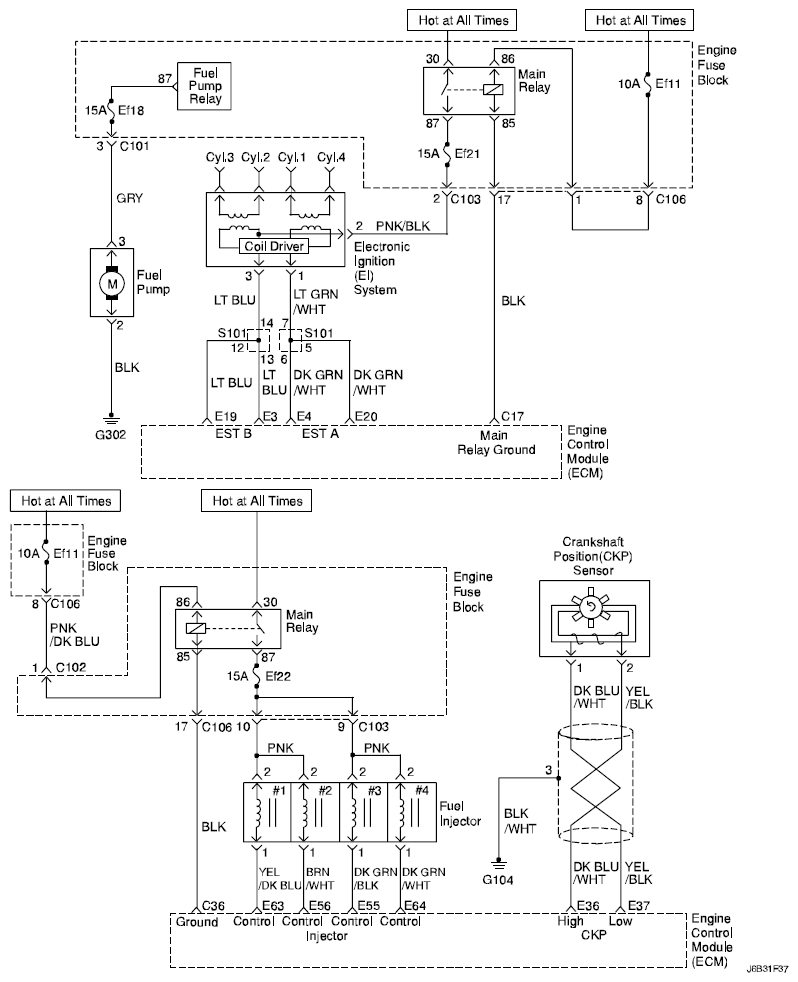

Fig 1: Cylinder Misfire Detected - Circuit Diagram

G04716270

Courtesy of SUZUKI OF AMERICA CORP.
