DTC P0140: HO2S Circuit Insufficient Activity Sensor 2: Notes

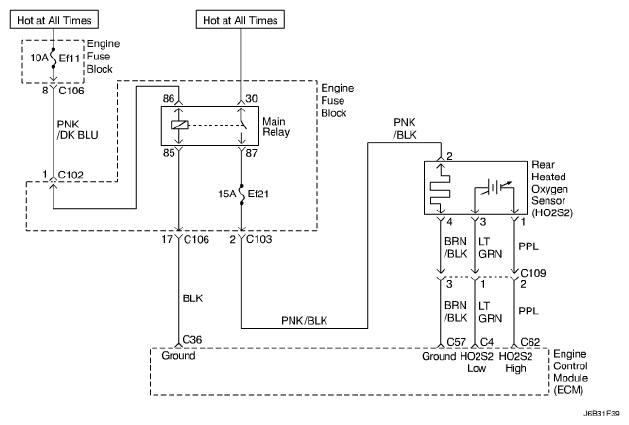

Fig 1: HO2S Circuit Insufficient Activity Sensor - Circuit Diagram

G04716235

Courtesy of SUZUKI OF AMERICA CORP.
