DTC P0133: HO2S Slow Response Sensor 1: Notes

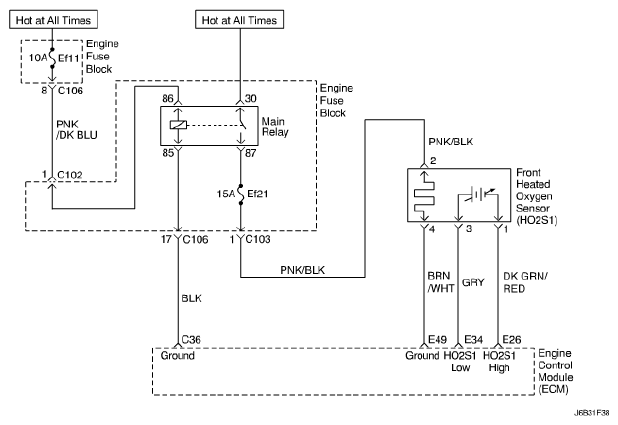

Fig 1: HO2S Slow Response Sensor - Circuit Diagram
G04716233Courtesy of SUZUKI OF AMERICA CORP.
