Hub and Bearing Disasembly and Assembly: Assembly

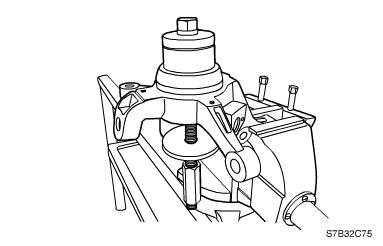

- Insert the threaded rod CH-46560-04 through the bearing CH-46560-06, Wheel Bearing Spacer CH-48835, wheel bearing and knuckle.
Courtesy of SUZUKI OF AMERICA CORP.
- Place the Wheel Bearing Spacer CH-48834 and nut CH-46560-05 on the rod CH-46560-04.

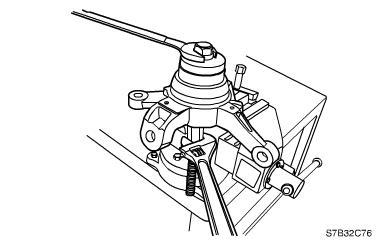

- Hand-tighten the nuts and install the wheel bearing in the knuckle.
Courtesy of SUZUKI OF AMERICA CORP.
- Remove all the special tools from the knuckle.
- Install the retaining ring.
- Insert the threaded rod CH-46560-04 through the bearing CH-46560-06, Wheel Bearing Spacer CH-46560-03, wheel hub and knuckle.
- Place the Wheel Bearing Spacer CH-48834 and nut CH-46560-05 on the rod CH-46560-04.
Courtesy of SUZUKI OF AMERICA CORP.

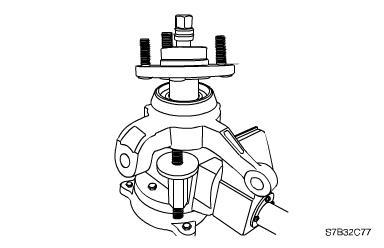

- Hand-tighten the nuts and install the wheel hub.
- Remove all the special tools from the knuckle assembly.
