ECM Wiring Diagram (For HATCHBACK Model) - 4/7

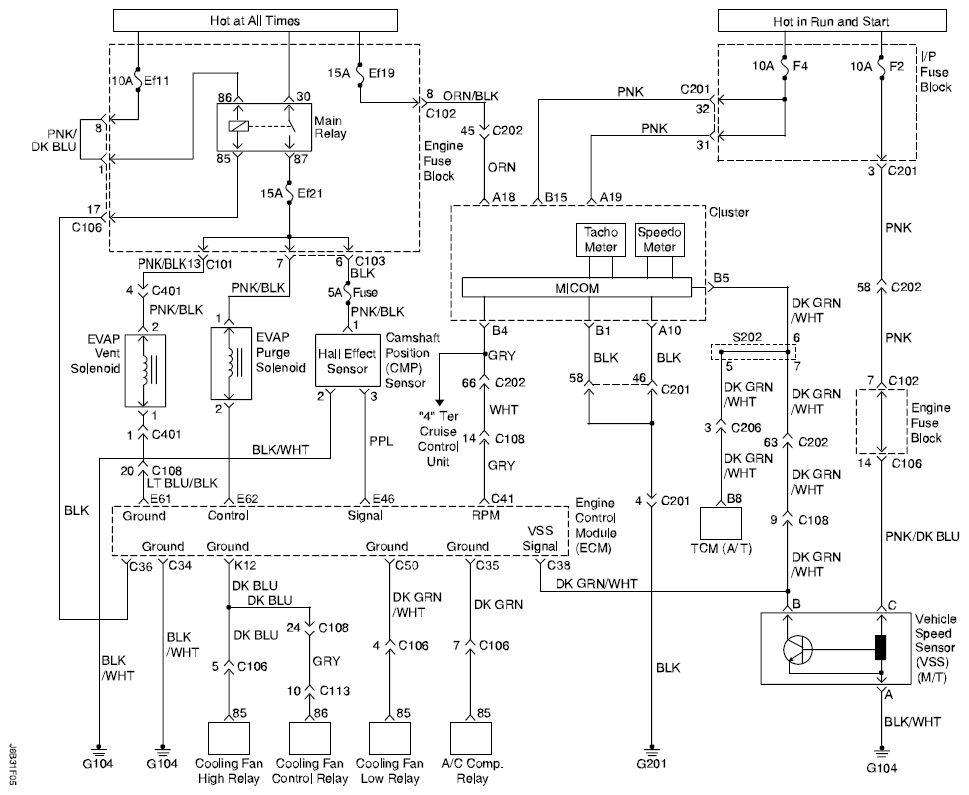

Fig 1: ECM Wiring Diagram (For Hatchback Model) - 4/7

G04716199

Courtesy of SUZUKI OF AMERICA CORP.
