DTC U0073: Control Module Communication Bus Off: Wiring Diagram

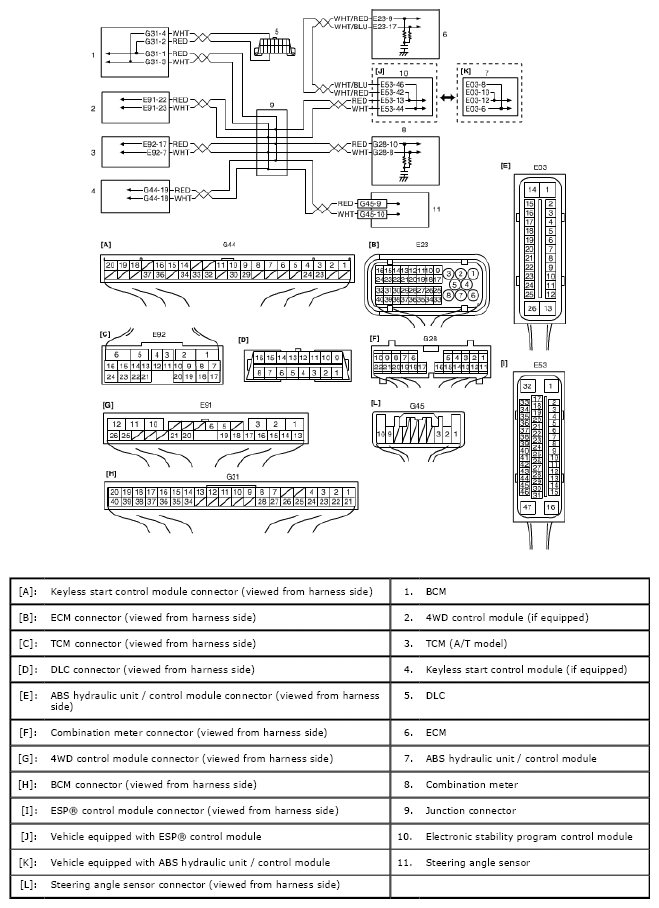

Fig 1: Control Module Communication Bus Off - Wiring Diagram

G04807129

Courtesy of SUZUKI OF AMERICA CORP.
