Select Cable Component

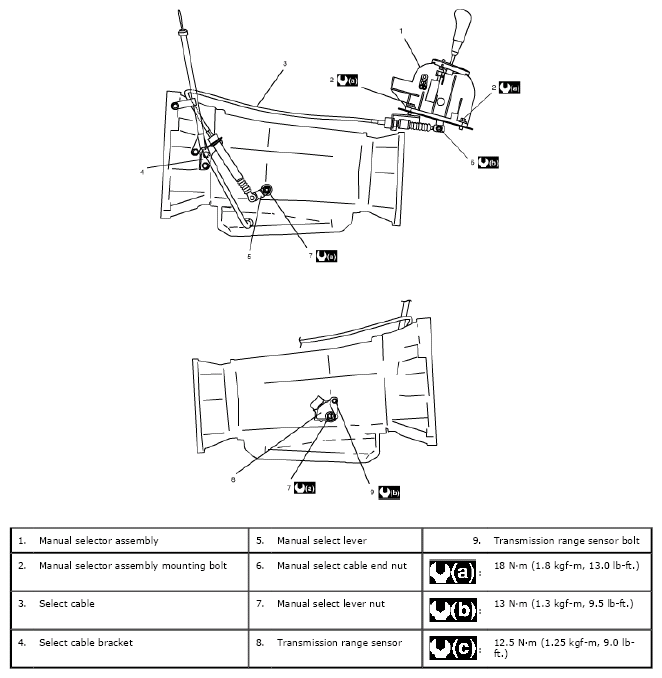

Fig 1: Select Cable Components With Torque Specifications

G04808584

Courtesy of SUZUKI OF AMERICA CORP.
