Automatic Transmission Unit Components

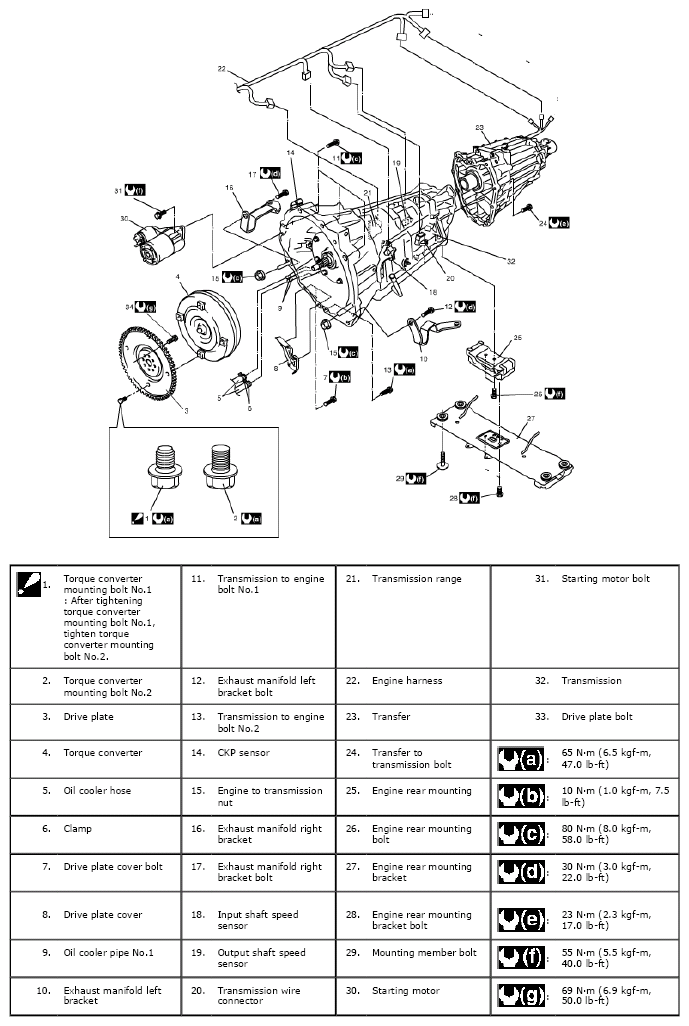

Fig 1: Automatic Transmission Unit Components With Torque Specification
G04808629Courtesy of SUZUKI OF AMERICA CORP.

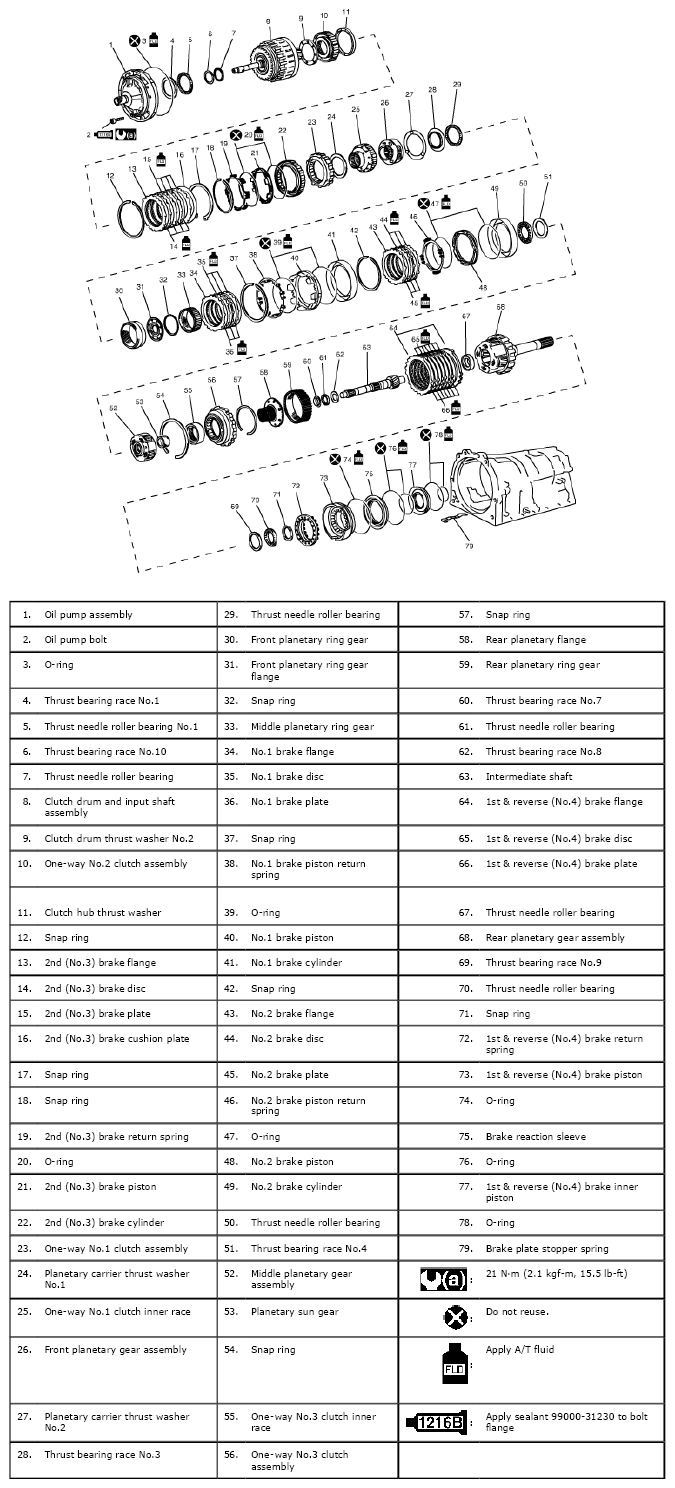

Fig 1: Automatic Transmission Unit Components With Torque Specification
G04808631Courtesy of SUZUKI OF AMERICA CORP.
