Front Strut Assembly Components
Front Strut Assembly Components

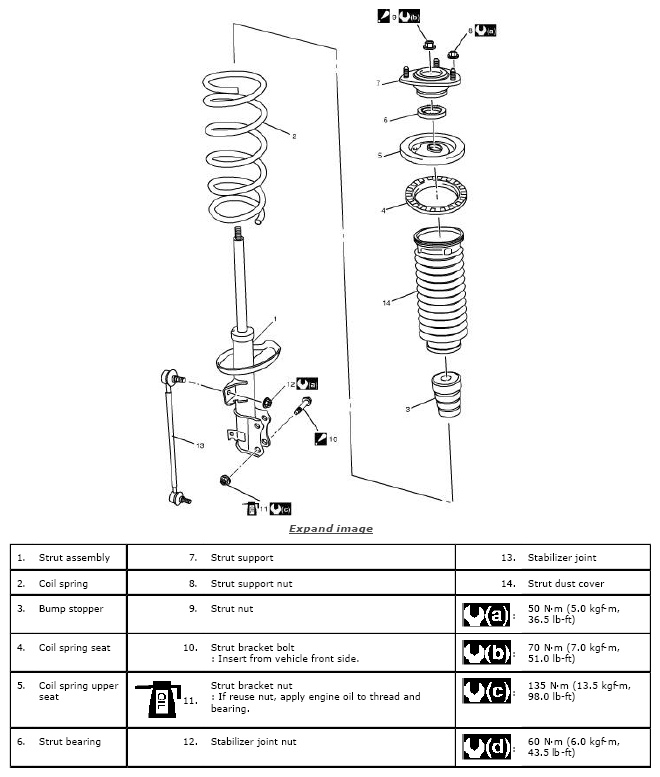

Fig 1: Exploded View Of Front Strut Assembly Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
