Pull-In Test

  1. Connect battery to magnetic switch as shown.
  2. Check that plunger and pinion move outward. If plunger and pinion don't move, replace magnetic switch.
    NOTE: Before testing, disconnect lead wire from terminal "M".

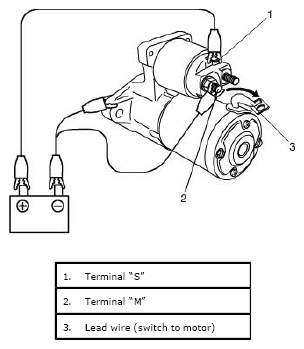

    Fig 1: Testing Starting Motor - Pull-In Test
    G04807654Courtesy of SUZUKI OF AMERICA CORP.
