Generator Inspection: Stator

Check resistance between the following leads of stator. if there is no continuity, replace stator.

STATOR LEAD AND RESISTANCE REFERENCE

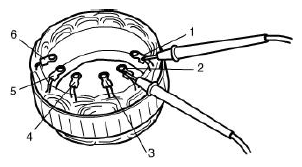

Fig 1: Checking Resistance Between Leads Of Stator

Courtesy of SUZUKI OF AMERICA CORP.

Using ohmmeter, check that there is no continuity between coil leads (1) and stator core (2). If there is continuity, replace stator.

Fig 2: Checking Continuity Between Coil Leads & Stator Core
Courtesy of SUZUKI OF AMERICA CORP.
