Home >> Suzuki >> 2006 >> Grand Vitara Base, AWD, Automatic >> Repair and Diagnosis >> Electrical >> Charging Systems >> Repair Instructions >> Generator Components

Generator Components

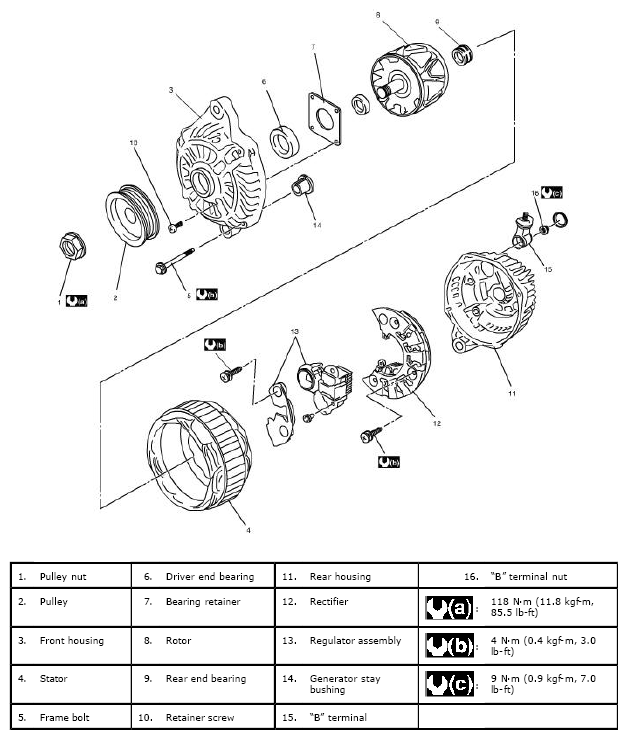

Fig 1: Generator Replacement Components With Torque Specifications

G04807715

Courtesy of SUZUKI OF AMERICA CORP.
